 ECN025-02P-02P1-01EG

This is a 1000M Ethernet signal slip ring integrate power. Through bore size is 25.4mm, used for data/signal transmission over rotary joints we provide a non-contacting Ethernet solution that perfectly meets the demand of high-speed data transmission. That solution supports flexible data rates from 10MBit up to 1GBit and can be integrated into hybrid rotary joint combinations. The demand for ever more efficient performance on automatic machines makes the use of field buses with ever higher data rates necessary. More requirements please contact with CENO sales@ceno360.com, we will provide the best solutions for you.

Product Details


ECN025-02P-02P1-01EG

Specification

Circuits

2*25A, 2*5A,1*PE1*Gigabit Ethernet

Voltage

0~380VAC/VDC

Electrical noise

≤30mΩ(50rpm)

Dielectric strength

≥1500V@50Hz(power)

≥500V@50Hz(signal)

Insulation resistance

≥500MΩ@500VDC(power)

≥300MΩ@100VDC(signal)

Operating speed

0-300 rpm

Contact material

Precious metal

Housing material

Aluminium alloy

IP protection grade

IP54

Through hole size

25.4 mm

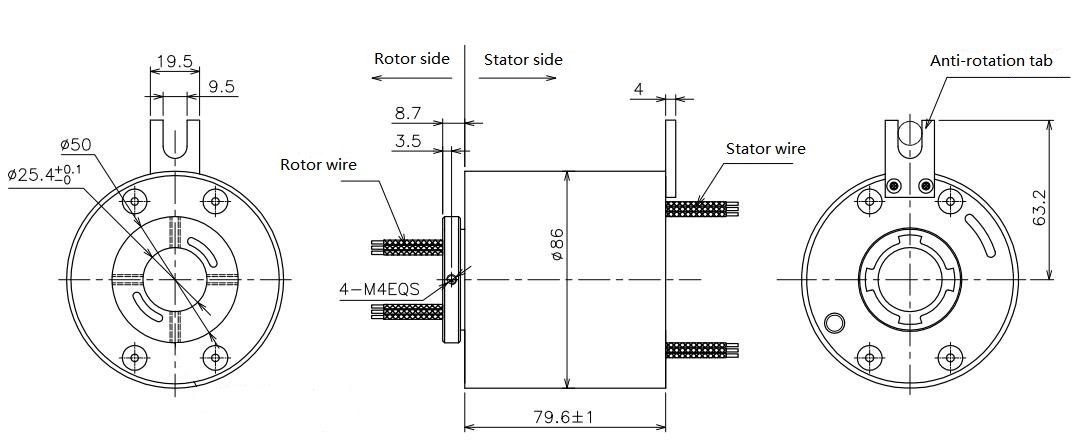

Outline drawing
