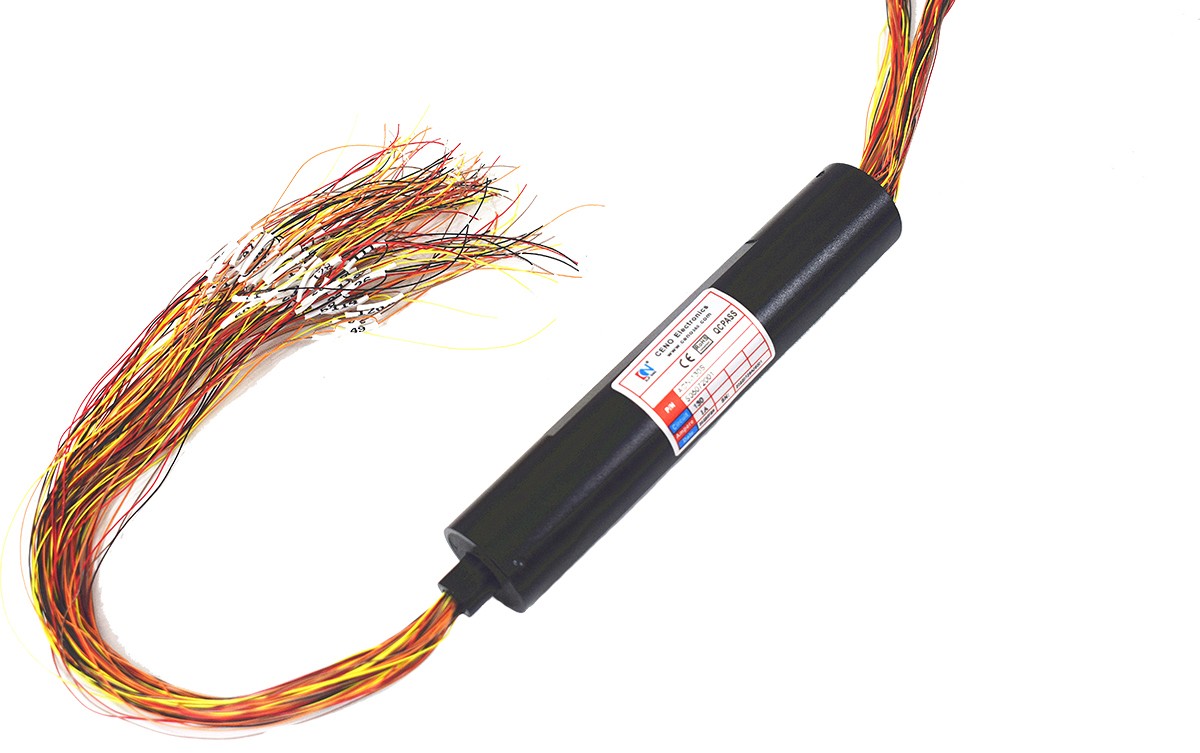

Capsule slip rings


ACN,BCN,CCN  series


CENO's capsule slip rings includes ACN,BCN,CCN for series.They have flexible spec options to fulfill the various and complex requirement of systems.Ring number are range from 2 rings  up to 100 rings. Outstanding signal types are Ethernet,canbus,profibus,RS,HDMI,HD-SDI,USB and so on. Typical outside diameter is 5.5mm,12.4mm,22mm,25mm in these series.

Product Details


Option

Circuit number: 1~200

Protection grade: IP51~IP68

Operation temperature: up to 100℃

Support various signal/power mixed transmit

Lead wire length/Cable exit way/Termination


Typical application

Surveillance/LED

Radar antenna/Military equipment

UAV/Robot/Mechanical arm

Medical equipment/Instrument




ModelID(mm)OD(mm)CKT No.Current/Signal VoltageWorking speedData sheet
ACN22A-06/2262A240VAC/DC
0-300RPM

Capsule slip rings(图1)PDF

ACN22A-12/22122A240VAC/DC0-300RPM

Capsule slip rings(图1)PDF

ACN22A-18/22182A240VAC/DC0-300RPM

Capsule slip rings(图3)PDF

ACN22A-24/22242A240VAC/DC0-300RPM

Capsule slip rings(图4)PDF

ACN22A-30/
22302A240VAC/DC0-300RPM

Capsule slip rings(图4)PDF

ACN22A-36/22362A240VAC/DC0-300RPM

Capsule slip rings(图4)PDF

ACN25-46/25462A240VAC/DC0-300RPM

Capsule slip rings(图7)PDF

ACN25-56/25562A240VAC/DC0-300RPM

Capsule slip rings(图7)PDF

BCN12-04/12.442A240VAC/DC0-300RPM

Capsule slip rings(图9)PDF

BCN12-06/12.462A240VAC/DC0-300RPM

Capsule slip rings(图9)PDF

BCN12-12/12.4122A240VAC/DC0-300RPM

Capsule slip rings(图9)PDF

BCN12U-06/12.442A240VAC/DC0-300RPM

Capsule slip rings(图12)PDF

BCN12U-12/12.462A240VAC/DC0-300RPM

Capsule slip rings(图12)PDF

BCN12U-18
/12.4122A240VAC/DC0-300RPM

Capsule slip rings(图12)PDF

BCN15-24/15.5
242A240VAC/DC0-300RPM

Capsule slip rings(图9)PDF

CCN05D/5.5
5
1A240VAC/DC0-300RPM

Capsule slip rings(图9)PDF

CCN07A/7.9
6
1A240VAC/DC0-300RPM

Capsule slip rings(图9)PDF

CCN11A
/11.1
12
1A240VAC/DC0-300RPM

Capsule slip rings(图9)PDF

ACN022-01S/22
1

1*DP

0~400VAC/VDC0-100 rpm

Capsule slip rings(图1)PDF

ACN25-04P2-18P

/
252218* signal,4 *10A0~240VAC/VDC 0-250 rpm

Capsule slip rings(图2)PDF
