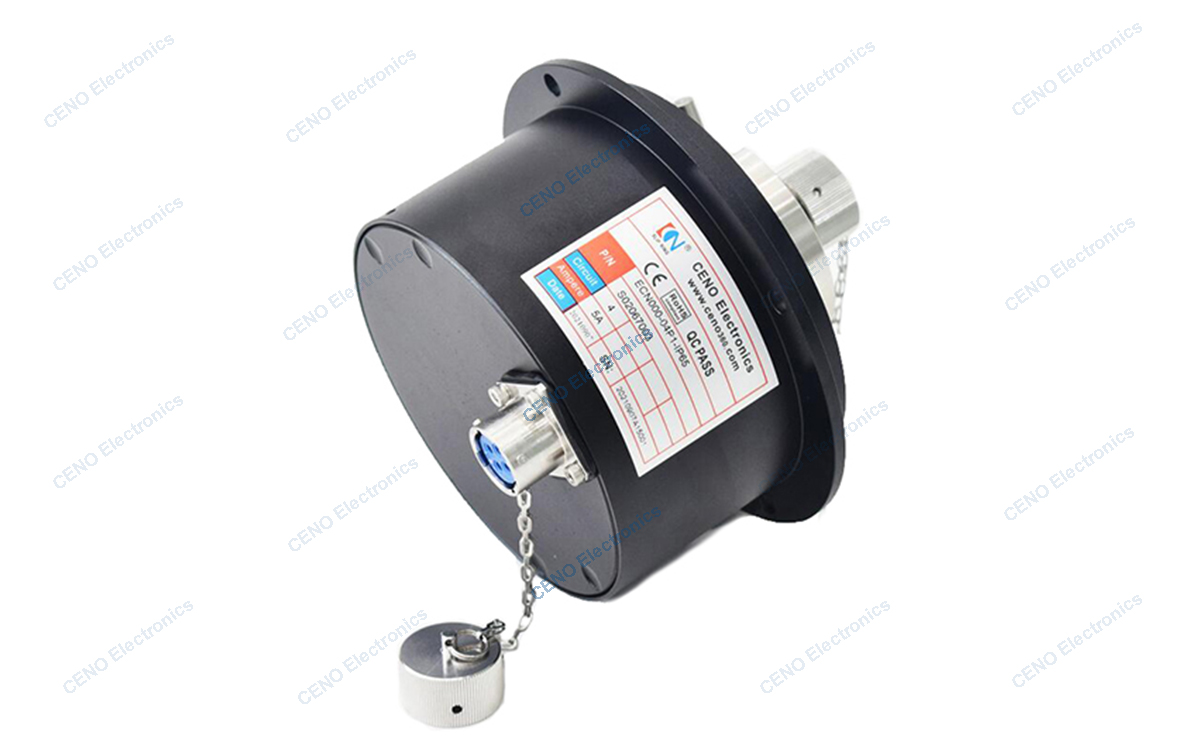

Waterproof slip rings

Waterproof slip ring is a kind of slip ring which is used the special environment of moisture, corrosion and underwater.According to working environment,the waterproof slipring could be divided into multiple protection grade,such as IP65,IP67,IP68 and so on.

Product Details

The protection grade design and material selection for the slip ring is associated with working environment liquid ingredients,such as sea water,fresh water,oil etc.

Model	ID (mm)	OD (mm)	CKT No.	Current/Signal	Voltage	IP grade	Working speed / rpm
ACN22-04P-06S-IP67	0	22	10	10 * Electric & Signal	0-240VAC/VDC	IP67	0-250
ECN000-02P1-IP66	0	50	2	2 * electrical signal	220VAC/VDC	IP66	0~3
ECN000-05P2-04S-IP65	0	56	9	9 * Electric & Signal	0~200VAC/VDC	IP65	0-300
ECN000-21P-05P2	0	70	26	26 * Electric	0~200VAC/VDC	IP65	0-15
ECN000-04P4-07P2-IP65	0	86	11	11 * Electric	0-400VAC/VDC	IP65	0-300
ECN000-11P1-06S	0	86	12	12 * Electrical & Encoder	0-400VAC/VDC	IP65	0-300
ECN000-22P-IP65	0	86	22	22 * Electric	0-400VAC/VDC	IP65	0-300
ECN000-34P-IP65	0	86	34	34 * Electric	0-400VAC/VDC	IP65	0-300
ECN000-15P-IP67	0	99	14	14 * Electric	380VAC/VDC	IP67	0~300
ECN000-16P-IP67	0	99	16	16 * Electric	380VAC/VDC	IP67	0~300
ECN000-27P-IP65	0	99	27	27 * Electric	0~380VAC/VDC	IP65	0-300
ECN000-04P1-IP65	0	115	4	4 * Electric	0-500VAC/VDC	IP65	0-100
ECN000-04P2-IP65-B	0	115	4	4 * Electric	0-500VAC/VDC	IP65	0~100
ECN000-02P-04S-02F- IP66	0	115	8	8 * Electric & Fiber optic	500VAC / 24VDC	IP66	0-50
ECN000-08P-08S	0	120	16	16 * Electric & Signal	380VAC/DC	IP66	0-50
ECN000-03P-IP68	0	185	3	3 * Electric	1100VAC	IP68	0-50
ECN000-09P-12S	0	190	21	21 * Electric & Ethernet	380VAC/24VDC	IP55	0-1
ECN000-12P2-01PE	0	210	13	13 * Electric	415VAC	IP65	0-20
ECN008-02P	8	50	2	2 * Electric	380VAC	IP68	0-300
ECN008-02P1-IP68	8	50	2	2 * Electric	380VAC	IP68	0-50
ECN008-02P-01EM-IP68	8	86	3	3 * Electric & Ethernet	0~220VAC/VDC	IP68	0-50
ECN010-02P-07S	10	52	9	9 * Electric & CAN	0~24VAC/VDC	IP55	0-30
ECN015-15P2-02S-IP65	15	64	17	17 * Electric & CAN	0~220VAC/VDC	IP65	0~300
ECN020-17P-IP67	20	130	17	17 * Electric	0 ~ 24VAC / VDC	IP67	0-50
ECN025-06S-IP55	25.4	86	6	6*signal (PT100)	0~24VAC/VDC	IP55	0-50
ECN025-08P2-08S-IP67	25.4	135	16	16 * Electric & Signal	0~220VAC	IP67	0-50
ECN025-12P3	25.4	86	12	12 * Electric	380VAC	IP65	0-300
ECN038-16P2-12S-IP65	38	99	20	20 * Electric & PT100 signal	0 ~ 380VAC/VDC	IP65	0-300
ECN038-04P-19S	38	99	23	23 * Electric & Signal	380VAC	IP65	0-300
ECN038-06P2-02EG-IP64	38.1	119	8	8 * Electric & Ethernet	0~220VAC/VDC	IP64	0-60
ECN038-04P4-03P1-IP67	38	120	7	7 * Electric	0 ~ 24VAC / VDC	IP67	0~30
ECN040-22P-58S-04EG-IP67	40	220	84	84 * Electric & Signal & Ethernet	0~400VAC/VDC	IP67	0~50
ECN050-10P2-14S-A-IP65	50	119	24	24 * Electric & Signal	380VAC	IP65	0-100
ECN050-18P-IP67	50	135	18	18 * Electric	380VAC/VDC	IP67	0~30
HG50160F-6P-23S	50	160	29	29 * Electric & Signal	0~220VAC/VDC	IP65	0-12
ECN050-11P-02EM-IP67	50	180	13	13 * Electric & Signal & Ethernet	0 ~ 48VAC / VDC	IP67	0~100
ECN050-35P-02EM-IP67	50	180	37	37 * Electric & Signal & Ethernet	0 ~ 48VAC / VDC	IP67	0~100
ECN060-02P-01S	60	140	3	3 * Electric & Signal	30VDC	IP68	0-30
ECN075-15P-IP68	75	160	15	15 * Electric	0 ~ 400VAC/VDC	IP68	0~100
ECN088-04P1-44S-IP65-JZ	88	140	48	48 * Electric & Signal	32VAC	IP65	0-50
ECN125-0750-07P2-01EM-IP65-A	125	270	15	15 * Electric & Ethernet	0 ~ 400VAC/VDC	IP65	0~10
ECN127-06S	127	140	6	6*1A	32VAC	IP65	0-50
ECN130-03P4-IP66	130	220	3	3 * Electric	380VAC	IP66	0-4
ECN150-12P1-IP67	150	298	12	12 * Electric	0~250VAC/VDC	IP67	0-40
ECN160-19P-02EM-IP67	160	330	21	21 * Electric & Ethernet	0~400VAC / VDC	IP67	0~50
ECN200-04P-12P2-A	200	380	16	16 * Electric	0~380 VAC/VDC	IP65	0~100
