ECN115-03P3-15S

This is a large inner diameter slip ring that with ID 115mm. CENO Electronics hollow shaft slip ring hole size from 3mm to 980mm are optional. Center hole can pass through the drive shaft, gas-liquid passage; It can also integrate high frequency, fiber, encoder, wave guide, gas and liquid and other joints. This slip ring including 3 rings of 15A,13 rings of 5A, 2 rings of 6A. This series product could integrate various signal, such as USB, Ethernet, CANBUS, Encoder, HDMI and etc.Typical application including radar system, marine industrial equipment, medical equipment.

Product Details

ECN115-03P3-15S	Specification
Rings	315A,135A,2*6A
Voltage	0~220VAC/VDC
Electrical noise	≤30mΩ(50rpm)
Dielectric strength	≥500V@50Hz
Isolation resistance	≥500MΩ@500VDC
Operating speed	0-60 rpm
Contact material	Precious metal
Housing material	Aluminium alloy & stainless steel
IP protection grade	IP51
Through hole size	115 mm

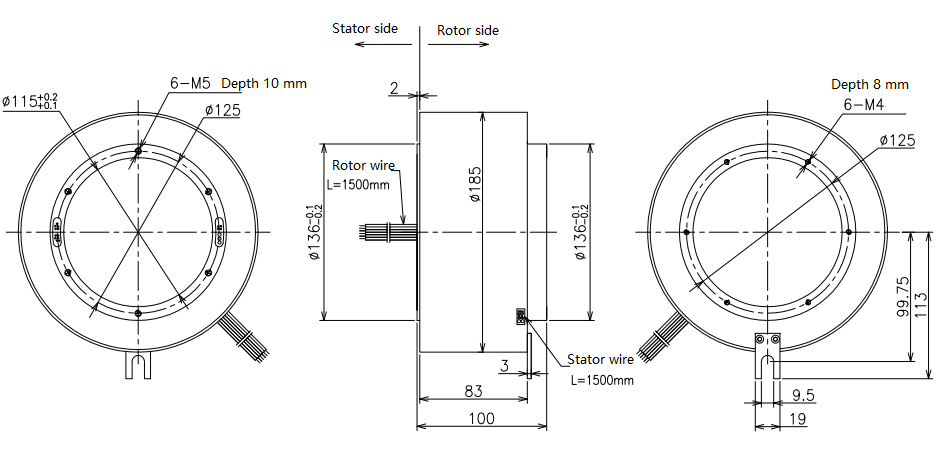

Outline drawing
