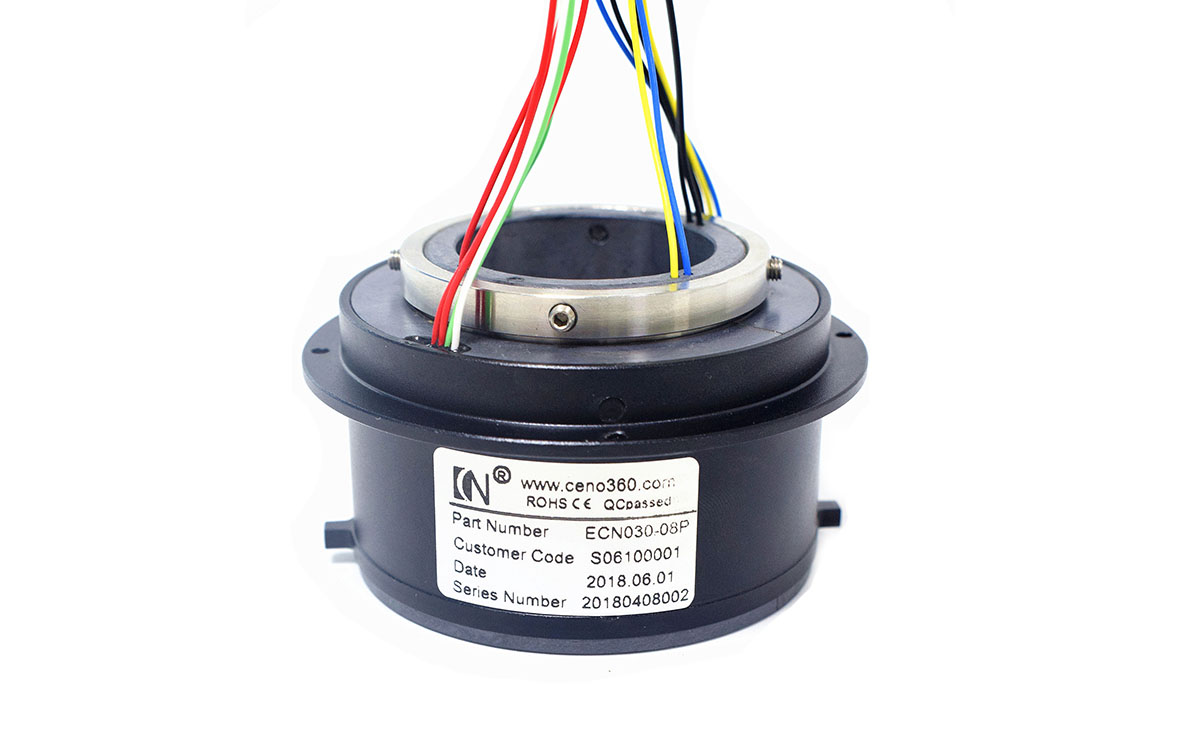

High/Low Temperature Slip Rings

Some certain application requires that slip ring endure high temperature during operation. Then slip ring takes specific material and use special structure in design. As high temperature slip ring series work under 250℃ condition, we have to take into consideration of the heat dissipation issue in design.

Product Details

Advantage

Endure high temperature up to 250℃

Anti-corrosion

Aging-resistance & Stable performance

Typical application

Drying oven

Automation machinery

Packaing equipment

Test equipment

Model	ID (mm)	OD (mm)	CKT No.	Current / Signal	Temperature	Voltage	Working speed rpm
ACN12-02P2-02P1-16S	0	12.5	20	20 * Power & Signal	-40°C~+80°C	28 VAC/VDC	0~250
ACN22W-03P5	0	22	3	3 *Power	-40°C~+80°C	120 VAC/VDC	0~300
ACN22A-06S-GW	0	22	6	6 * Signal	-20°C~+180°C	240 VAC/VDC	0~10
ACN25-08P2-16S-01EG	0	25	25	24 * Power & Signal ;1* Ethernet	-40°C~+80°C	240 VAC/VDC	0~250
ACN25-10P1-32S-01EG	0	25	43	30 * Power & Signal; 1Ethernet; 12Cameralink	-40°C~+80°C	48 VAC/VDC	0~250
ECN000-08P2-25S-02EM	0	35.5	20	35 * Power & signal	-40°C~+80°C	220 VAC/VDC	0~100
ECN000-20P1-21S-01EG	0	35.5	42	41 * Power & Signal; 1*Ethernet	-40°C~+60°C	0 ~ 28 VAC/VDC	0~100
ECN000-04P2-36S-01EG-01HD	0	36	42	42*Power & Signal, Ethernet & HD-SDI Signal	-40°C~+80°C	220VAC/VDC	0~100
ECN000-0240-04S-01EG-2000	0	50	4	2 * Power; 1 * RS422; 1 * Ethernet	-40°C~+80°C	0 ~ 24VAC / VDC	0~30
ECN000-02P2-08S-01EG-2000	0	50	5	2 * Power; 2RS422 Signal; 1Ethernet	-40°C~+80°C	0-24VAC/VDC	0~30
ECN000-09P-EM-23S	0	56	33	32 * Power & signal, 1*Ethernet	-40~+70℃	24VDC	0~300
ECN000-02P-02P1-01F	0	60	5	4 * Power; 1 *Fiber	-55~+85℃	800 VDC	0-250
ECN000-04P2-05P1-23S-01EG	0	62	33	32Power; 1 Ethernet	-55°C~+70°C	220VAC/VDC	0~300
ECN000-02P2-04S-01EM-02R	0	80	4	2Power; 1Rs422 Signal; 1*Ethernet	-50°C~+60°C	220VAC/VDC	0~100
ECN000-02P3-02P2-04S-01EM	0	80	6	4 * Power; 1 * RS422; 1 * Ethernet	-40°C~+60°C	24VAC/VDC	0-60
ECN000-02P2-08S-01EM-02R	0	80	11	10 * Power & Signal, 1*Ethernet	-40°C~+80°C	440VDC	0~250
ECN000-04P2-12S-02R	0	80	16	16 * Power & Signal	-40°C~+80°C	440VDC	0~250
ECN000-04P2-13S	0	80	17	17 * Power & Signal	-40°C~+80°C	440 VAC/VDC	0~250
ECN000-04P2-02P1-13S-02EM-JZ	0	80	21	6 * Power; 12TL signal; 2PE; 2*Ethernet	-55~+70℃	24 VAC	0-50
ECN000-03P4-06P-27S-04EM	0	86	40	23 * Power & Signal; 7*RS232/RS422/Ethernet	-40°C~+60°C	0 ~ 220 VAC/VDC	0-300
ECN000-04P2-04P1-08S-01EG	0	90	13	8 * Power; 4 * RS422 signal, 1 * Ethernet	-40~+80℃	24VAC/VDC	0-250
ECN000-09P-51S-01EM	0	119	61	59 * Power & Signal; 1PE; 1 Ethernet	-40°C~+85°C	380VAC/VDC	0~20
ECN000-07P-26S-03EG	0	119	36	33 * Power & Signal; 3 * Ethernet	-40°C~+70°C	1000VAC/VDC	0~100
ECN000-01P4	0	125	1	1 * Power	-40°C~+70°C	1200VAC/VDC	0~100
ECN000-08P2	0	125	8	8 * Power	-40°C~+80°C	380VAC/VDC	0~100
ECN000-04P-01EM	0	155	5	4 * Power; 5*Ethernet	-50°C~+5°C	400VAC/24VDC	0~15
ECN000-04P2	0	160	4	4 * 7A	-40°C~+80°C	1000 VAC/VDC	0~50
ECN000-09P-12S	0	190	21	11* Power & Signal; 10*Ethernet	-40°C~+40°C	380VAC/24VDC	0~1
ECN000-22P-05S	0	190	27	22 * Power; 5* Ethernet; 1*PE	-40~+40°C	380VAC/24VDC	0~20
ECN000-38P4-IP56-B	0	220	38	37 * Power; 1*PE	-57°C~+40°C	380VAC/VDC	0~5
ECN000-25P	0	314	25	25 * Power	-20~+120℃	600VAC	0-5
ECN012-03P2-16S-01EG	12	56	8	8 * Power & Ethernet	-40~+65°C	0-240VAC/VDC	0~250
ECN012-05P1-05S-01EG	12	56	11	10 * Power & Signal; 1 * Ethernet	-40~+55°C	0-220VAC/VDC	0~300
ECN012-02P3-08S-01EG	12	56	5	4 * Power & Signal; 1 * Ethernet	-40°C~+65°C	0 ~ 28 VAC/VDC	0~200
ECN012-03P2-17S-01EG	12	58	9	5 * Power; 3 * RS422; 1* Ethernet	-40°C~+50°C -55°C~+60°C	220VAC/VDC	0~300
ECN012-10P3-63S-02EG	12	75	75	73 * Power & Signal; 2 * Ethernet	-40°C~+55°C; -55°C~+70°C	330 VAC/VDC	0~300
ECN025-03P3-02P1-10S	25	95	15	15 * Power & Signals	-40°C~+55°C	800VDC	0~300
ECN035-04P3-02P2--13S	35	85	15	14 * Power & Signal; 1*Ethernet	-40°C~+65°C	0~24VAC/VDC	0~300
ECN038-02P4-02EM-IP51	38	80	4	4 * Power & Ethernet	-60℃~+70℃	240VDC	0-300
ECN038-04P-01EG	38	86	12	4 * Power; 8 * Ethernet	-40℃~+70℃	24VDC	0-50
ECN035-06P2-05P1-01PE-12S	35	99	34	24 * Powe & Signal	-40°C~+80°C -45°C~+85°C	380VAC/VDC	0~300
ECN038-02P3-06S-01EM	38	79	79	6 * Power & Signal; 1 *Ethernet	-40°C~+80°C	380VAC/VDC	0~300
ECN038-02P-11S-JZ	38	99	15	6 * Power & Signal; 9 * RS422 & RS232	-55℃~+85℃	380VAC	0~100
ECN038-04P4-10S-01EM	38	101	9	9 * Power & Ethernet & RS422	-55°C~+70°C	28VAC/VDC	0~300
ECN038-04P4-14S	38	101	16	18 * Power & Signal	-55°C~+60°C; -55°C~+70°C	0-380VAC/VDC	0~300
ECN040-02P4-02P3-05S-01EM	40	95	10	6 * Power & Signal; 1 * Ethernet	-40°C~+85°C	380VAC	0~60
ECN040-04P-16S	40	160	5	20 * Power & Signal	-50°C~+70°C	24VAC/VDC	0~20
ECN044-04P2-04S	44	106	8	8 * Power & Signal	-40~+85℃	440VAC /24VDC	0~600
ECN050-14S-01EM-IP65	50	119	5	3 * Thermo couple; 1 * Encoder; 1 * Ethernet	-40°C~+60°C	24VAC/VDC	0~300
ECN050-05P3-32P1	50	119	37	37 * Power	-40°C~+80°C	250VAC	0~300
ECN055-03P3-03P2-20P1	55	99	26	26 * Power	-40°C~+70°C	380VAC/VDC	0~50
ECN055-04P1-26S-JZ	55	110	30	30 * Power & Signal	-55℃~+70℃	32 VAC	0~50
ECN060-04P4-10S-01EM	60	100	5	6 * Power & Signal; 1 * Ethernet	-40°C~+80°C	380VAC/VDC	0~16
ECN065-08P2-10S-02EM	65	125	20	18 * Power & Signal; 2 * Ethernet	-50°C~+70°C	24VAC/VDC	0~20
ECN070-02P4-02P3-05S-01EM	70	120	6	6 * Power & Signal; 1* Ethernet	-40°C~+80°C	380VAC/VDC	0~ 60
ECN070-16P-05S-01EM	70	120	22	21* Power & Signal; 1*Ethernet	-40°C~+80°C	380VAC/VDC	0~ 250
ECN080-04P2-13S-A	80	110	16	16 * Power & Signal	-40°C~+85°C	380 VAC	~
ECN080-0415-0410-18S	80	129	14	10 * Power & Signal; 4 * RS422 & RS232; 1* PE	-40°C~+80°C	380VAC/VDC	0~ 60
ECN080-02P3-10S	80	129.5	12	12 * Power & Signal	-40°C~+80°C	220 VAC/VDC	0~ 60
ECN080-15P-JZ	80	130	15	15 * Power	-70°C~+85°C	380VAC/DC	0~60
ECN080-04P2-18S-JZ	80	130	22	22 * Power & Signal	-70°C~+85°C	380VAC/DC	0~60
ECN080-08P2-10P1-GW	80	160	18	18 * Power	-20°C~+140°C	380 VAC/VDC	0~300
ECN088-04P1-37S-JZ	88	140	41	41 * Power & Signal	-55~+70℃	32VAC	/
ECN090-03P3-09P1	90	160	12	12 * Power	-40°C~+80°C	380VAC/VDC	0 ~ 50
ECN100-16P1-47S-02EG	100	170	65	28 * Power & Signal	-40°C~+70°C	0 ~ 48 VAC/VDC	0~300
ECN110-04P4-26S	110	170	30	30 * Power & Signal	-40°C~+80°C	220VAC/VDC	0~50
