Power/signal+RF rotary joint

Power/signal+RF rotary joint is a non-standard CENO integrated slip ring series. It integrates current, signal and RF rotating joint together for the radar industry. Its current can reach up to serveral hundred amps. The signal type could cover all types accoridng the application need. Meanwhile the current can be up to several hundred amps in the frequency of high -frequency and integrates high frequency rotary joints, the signal type can cover all types according to the application requirement. The frequency of high-frequency joints is from DC to 50ghz, and the the channel could up to five channels. This kind of integrated slip ring gets stable performance to meets EMC requirements. It is widely used in various radar antenna systems.

Product Details

Characteristic

Different current and signal type

Different RF frequence type

Various size

Well performance,Various function



Optional

Circuit Channel Number

Protection grade

Installation way

Signal type and RF frequence size


Application

High definition network

Satellite communication

Military industry

Radar antennas



Model

ID

(mm)

OD

(mm)

CKT No.Current/Signal VoltageWorking speedSpec

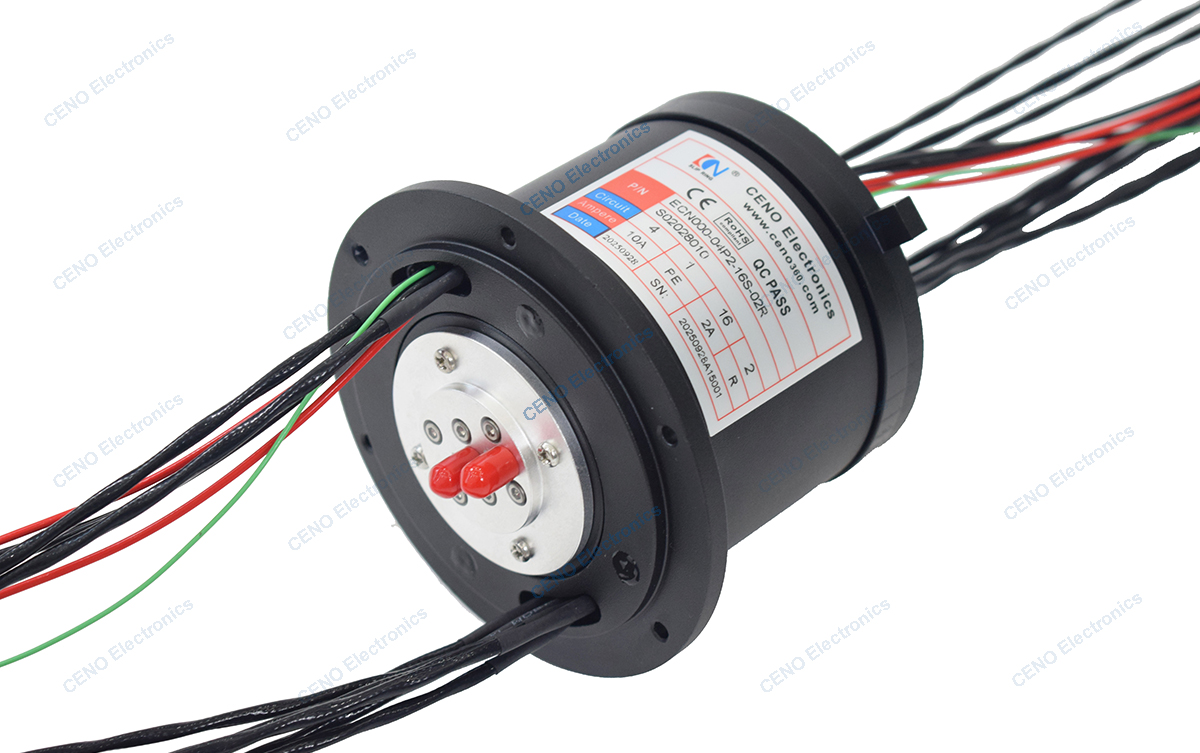

ECN000-02P4-08P1-04S-01EG-02R070
17

2*20A; 2*3A; 2*2A; 4*1A; 1*RS422; 1*1000M Ethernet;

2* RF SMA-f(50Ω)

0-24VAC/VDC0~100rpm1-220510092604b8.jpg
ECN000-02P-06S-02R
090
8

2* 25A,6*signal;

2* RF SMA(50Ω)

48VAC0~50rpm


ECN000-05P2-05S-04R 0105
12

4*10A,4*1A;

4*RF

0-440VAC/VDC0~60 rpm


ECN000-04P3-06S-02EM-03R0119
15

4*15A, 4*RS, 2*100M Ethernet;

3 * RF 12GHz

0~240VAC / 24VDC0-20 rpm


ECN000-26P-01R0260264*40A,10*1A,12*1A,1* Wave guide CPR284G(EIA RS-271A)0~250VAC/VDC
0-50 rpm


ACN24-1R24P102425

24 * 2A;

1*RF signal

0~240VAC/VDC0-80 rpm


ACN-24S-04RF02428

24*signal;

 4*RF signal

0~110V AC/DC
0~10rpm

ACN24-1R30P1

024
31

30 * 2A;

1* RF signal

0-240VAC/VDC0-80 rpm


ACN24-1R36P102437

36 * 2A;

1 * RF signal

0-240VAC/VDC

0~80rpm

ACN-56A-40P-02RF025
424*6A; 36*2A;  2* RF Signal0-240VAC/VDC0-50 rpm1-221101155355D3.jpg
ACN-56A-04P1-40P-02RF
02546

4 * 6A, 40 * 2A;

2 * RF signal

0~240VAC/VDC0-50 rpm
