CENO has developed signal slip ring with Gigabit Ethernet signal character base on market requirement.The Ethernet slip ring comply with EMC compatibility and meet the requirement of Signal impedance matching, to make sure transmission low loss, no error code,long distance transmission. CENO Ethernet slip ring transmission distance could up to 1000Mbps,or over this speed. It could integrate another current and signal into one slip ring for different customer's requirement.
Feature
Transmit 100M/1000M Ethernet signal.
Transmit stably, no package loss,no cross talk, low loss.
Integrate multi-signal and current.
No interference between power and signal, comply with EMC compatibility.
RJ45 connector is available.
Application
Simulation test equipment
Automation machinery
Medical equipment
Test equipment
Turntable equipment
Oil drilling

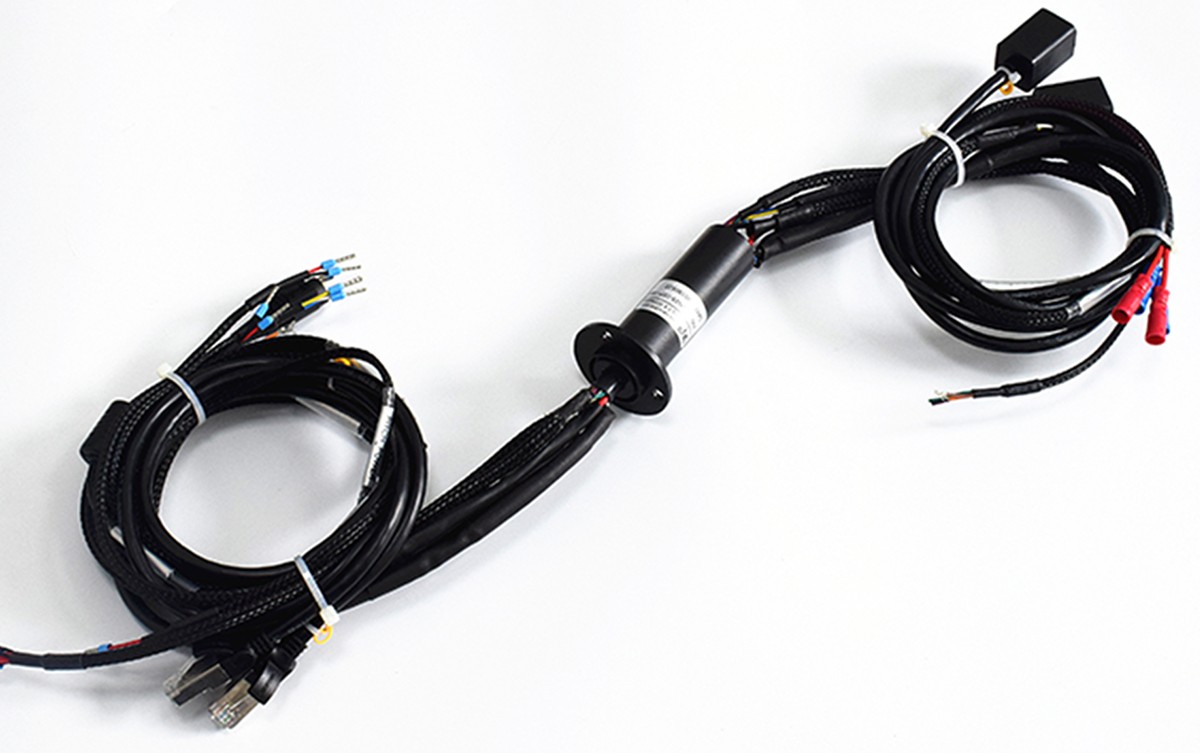

ECN025-04P2-07S-01EG
| Model | ID (mm) | OD (mm) | CKT No. | Current/Signal | Voltage | Working speed rpm | Spec | Model | ID (mm) | OD (mm) | CKT No. | Current/Signal | Voltage | Working speed rpm | Spec | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ECN000-03120-12P-04S-02EG | 0 | 125 | 18 | 3 Circuits * 120A(72V);8 Circuits *10A(48V); 4 Circuits *1A(48V);1 Group * CAN bus; 2 Groups * Gigabit Ethernet | 0~72VAC/VDC | 0~30 |  | ECN000-08P2-16S-01EG | 0 | 56 | 23 | 8 circuits × 10A; 12 circuits × signal; 2 groups × RS485; 1 group × Gigabit Ethernet | 0~24VAC/VDC | 0~300 | | |
| ECN000-06P-06S-01EG | 0 | 13 | 56 | 56 * Electric & Ethernet | 0~380VAC/VDC | 0-300 | | ECN000-10P3-63S-02EG | 0 | 72 | 76 | 10 circuits × 15 A; 63 circuits × signal; 2 groups × Fast Ethernet; 1 group × Gigabit | 0–330 VAC/VDC | 0–300 rpm | | |
| ECN000-06P1-06S-01EG-01F | 0 | 56 | 14 | 6 channels × 5 A; 6 channels × signal; 1 group × Gigabit Ethernet; 1 channel × optical fiber | 0–220 VAC/VDC | 0–300 | | |||||||||
| ECN000-06P2-04S-01EG | 0 | 56 | 11 | 6 Circuits * 10A, 4 Circuits * 2A(Signal), 1 Group * 1000M Ethernet | 0~220VAC/VDC | 0~100 | | |||||||||
| ECN000-06P2-04S-01EG-A | 0 | 56 | 11 | 6 Circuits * 10A, 4 Circuits * 2A(Signal), 1 Group * 1000M Ethernet | 0~220VAC/VDC | 0~100 | | |||||||||
| ACN30-14P1-04S-01EG-B | 0 | 30 | 16 | 16 * Power, RS422 & Ethernet | 0~28 VAC/VDC | 0-300 | | |||||||||
| ECN000-02P3-01EG | 0 | 35 | 3 | 2 * Power; 1 * Ethernet | 0~220VAC/VDC | 0-10 | | |||||||||
| ECN000-04P2-04P1-10S-01EM | 0 | 68 | 4 circuits × 10 A (48 V); 2 circuits × 5 A (24 V); 2 circuits × 3 A (24 V); 1 group × CAN; 1 group × RS422; 1 group × RS485; 1 group × 100 Mbps Ethernet | 0–48 VAC/VDC | 0–60 | | ||||||||||
| ECN000-05P1-01EG | 0 | 35 | 6 | 6 * Electric & Ethernet | 0~380VAC/VDC | 0-1000 | | |||||||||
| ECN000-05P1-10S-01EG | 0 | 35 | 16 | 16 * Electric & Ethernet | 0~24VAC/VDC | 0~100 | | |||||||||
| ECN000-08P5-03EG | 0 | 50 | 11 | 11 * Electric & Ethernet | 0~50VAC/VDC | 0~200 | | |||||||||
| ECN000-02EG | 0 | 56 | 2 | 2 * Ethernet | 0~380VAC | 0~300 | | |||||||||
| ECN000-02P2-01EG | 0 | 56 | 3 | 3 * Electric & Ethernet | 0~400 VAC/VDC | 0~50 | | |||||||||
ECN000-05P5-01EM | 0 | 56 | 6 | 6 * Electric & Ethernet | 0~415 VAC/VDC | 0~300 |  | |||||||||
| ECN000-02P1-03S-01EG | 0 | 56 | 6 | 6 * Electric & Ethernet | 0~220VAC/VDC | 0-300 | | |||||||||
| ECN000-06P2-01EM | 0 | 56 | 7 | 7 * Electric & Ethernet | 0~380VAC/VDC | 0~300 |  | |||||||||
| ECN000-04P2-08P1-01EG | 0 | 56 | 13 | 13 * Electric & Ethernet | 0~400VAC/VDC | 0~300 |  | |||||||||
| ECN000-02P-04P2-09S-02EM | 0 | 56 | 17 | 17 * Electric & Ethernet | 0~220VAC/VDC | 0-12 | | |||||||||
| ECN000-10P-09S-01EG | 0 | 56 | 20 | 20 * Electric & Ethernet | 0~380VAC/VDC | 0-300 | | |||||||||
| ECN000-12P3-16S-02EM | 0 | 58 | 24 | 24 * Power & Ethernet | 0~280VAC/VDC | 0-300 | | |||||||||
| ECN000-02P3-07S-01EM | 0 | 65 | 10 | 10 * Electric & Ethernet | 0~30VAC/VDC | 0-300 | | |||||||||
| ECN000-04P3-10S-01EM | 0 | 70 | 15 | 15 * Electric & Ethernet | 0~380VAC/VDC | 0-300 | | |||||||||
| ECN000-77P | 0 | 82 | 77 | 77 * Electric & Ethernet | 400VAC / VDC | 0~50 | | |||||||||
| ECN000-06P-02S-01EM | 0 | 86 | 9 | 9 * Electric & Profinet | 0~480VAC/VDC | 0~300 | | |||||||||
| ECN000-03P4-02P1-18S-02EM | 0 | 86 | 11 | 11 * Electric & Ethernet signal | 0~220VAC/VDC | 0~300 | | |||||||||
| ECN000-09P5-05EM | 0 | 86 | 14 | 14 * Electric & Ethernet | 0~220VAC/VDC | 0-30 | | |||||||||
| ECN000-02P-09S-03EG | 0 | 86 | 14 | 14 * Electric & Ethernet | 380VAC | 0-300 | | |||||||||
| ECN000-67S-01EG | 0 | 86 | 68 | 68 * Electric & Ethernet | 0~50VAC/VDC | 0~550 | | |||||||||
| ECN000-05P-10S-01EM-04R-A | 0 | 99 | 16 | 16 * Electric & Ethernet | 0~220VDC | 0-50 | | |||||||||
| ECN000-04P2-13S-01EG | 0 | 99 | 18 | 18 * Electric & Ethernet | 0~50VDC | 0-100 | | |||||||||
| ECN000-62P-02EM-01EG | 0 | 99 | 65 | 65 * Electric & Ethernet | 0~48VDC | 0-300 |  | |||||||||
| ECN012-04P1-04S-01EM-01EG | 12 | 56 | 10 | 10 * Electric & Ethernet | 380VAC | 0-300 | | |||||||||
| ECN012-06P2-01EM | 12 | 56 | 7 | 7 * Electric & Ethernet | 380VAC | 0-300 |  | |||||||||
| ECN012-12P1-01EG | 12 | 56 | 13 | 13 * Electric & Ethernet | 380VAC/VDC | 0-300 | | |||||||||
| ECN012-12P1-01EM | 13 | 56 | 13 | 13 * Electric & Ethernet | 380VAC | 0-300 | | |||||||||
| ECN013-04P2-08S-01EM | 13 | 76 | 13 | 13 * Electric & Ethernet | 24VAC/VDC | 0~300 | | |||||||||
| ECN025-28P1-08S-03EM | 25 | 74 | 33 | 33 * Electric & Ethernet | 220VAC/48VDC/24VDC | 0-300 | | |||||||||
| ECN025-02P-02P1-01EG | 25 | 86 | 5 | 5 * Electric & Ethernet | 0~380VAC/VDC | 0-300 | | |||||||||
| ECN025-03P4-02EG | 25 | 86 | 5 | 5 * Electric & Ethernet | 0~380VAC/VDC | 0~60 | | |||||||||
ECN025-02P-03P3-01EG | 25 | 86 | 6 | 6 * Electric & Ethernet | 0~380VAC/VDC | 0-300 | | |||||||||
| ECN025-03P2-04S-02EG | 25 | 86 | 9 | 9 * Electric & Ethernet | 220 VAC | 0~50 | | |||||||||
| ECN025-06P1-03EG | 25 | 86 | 9 | 9 * Electric & Ethernet | 380VAC | 0-300 | | |||||||||
| ECN025-04P3-05P1-01EG | 25 | 86 | 10 | 10 * Electric & Ethernet | 0~380VAC/VDC | 0-300 | | |||||||||
| ECN025-08P1-02EG | 25 | 86 | 10 | 10 * Electric & Ethernet | 0~380VAC/VDC | 0-300 | | |||||||||
| ECN025-08P1-02EG-FL | 25 | 86 | 10 | 10 * Electric & Ethernet | 0~380VAC/VDC | 0-300 | | |||||||||
| ECN025-08P2-02EG | 25 | 86 | 10 | 10 * Electric & Ethernet | 380VAC | 0-300 | | |||||||||
ECN025-08P2-02EG-FL | 25 | 86 | 10 | 10 * Electric & Ethernet | 0~380VAC/VDC | 0-300 | | |||||||||
| ECN025-09P1-01EG | 25 | 86 | 10 | 10 * Electric & Ethernet | 0~220VAC/VDC | 0-300 | | |||||||||
| ECN025-05P-04S-01EM-01EG | 25 | 86 | 11 | 11 * Electric & Ethernet | 0~380VAC/VDC | 0-300 | | |||||||||
| ECN025-05P4-05S-01EM | 25 | 86 | 11 | 11 * Electric & Ethernet | 0~380VAC/VDC | 0-300 | | |||||||||
| ECN025-08P1-03EG | 25 | 86 | 11 | 11 * Electric & Ethernet | 380VAC | 0-300 | | |||||||||
| ECN025-04P2-07S-01EG | 25 | 86 | 12 | 12 *Power Encoder & Ethernet | 380VAC | 0-300 | | |||||||||
| ECN025-10P2-02EG | 25 | 86 | 12 | 12 * Electric & Ethernet | 380VAC | 0-300 | | |||||||||
| ECN025-06P2-06S-01EG | 25 | 86 | 13 | 13 * Electric & Ethernet | 0~380VAC/VDC | 0-300 | | |||||||||
| ECN025-10P2-04S-02EG | 25 | 86 | 16 | 16 * Electric & Ethernet | 380VAC/24VAC | 0-300 | | |||||||||
| ECN025-15P2-02EG | 25 | 86 | 17 | 17 * Electric & Ethernet | 220VAC/24VAC | 0-300 | | |||||||||
| ECN025-10P1-08S-02EG | 25 | 86 | 20 | 20 * Electric & Ethernet | 30-80VAC | 0-300 | | |||||||||
| ECN025-1815-02EG | 25 | 86 | 20 | 20 * Electric & Ethernet | 380VAC | 0-300 | | |||||||||
| ECN025-04P-15S-02EG | 25 | 86 | 21 | 21 * Electric & Ethernet | 380VAC | 0-300 | | |||||||||
| ECN025-06P1-14S-01EG | 25 | 86 | 21 | 21 * Electric & Ethernet | 0~380VAC/VDC | 0-300 | | |||||||||
| ECN025-20S-02EG | 25 | 86 | 22 | 22 * Electric & Ethernet | 380VAC/VDC | 0-300 | | |||||||||
| ECN025-25S-02EG | 25 | 86 | 27 | 27 * Electric & Ethernet | 380VACVDC | 0-300 | | |||||||||
| ECN025-1815-08S-02E2 | 25 | 86 | 28 | 28 * Electric & Ethernet | 380VAC | 0-300 | | |||||||||
| ECN025-20P2-38S | 25 | 86 | 30 | 30 * Electric & Ethernet | 380VAC/24VDC | 0-300 | | |||||||||
| ECN025-03P2-01EM-01EG | 25 | 99 | 5 | 5 * Electric & Ethernet | 380VAC/VDC | 0-100 | | |||||||||
| ECN025-06P1-06P2-02EG | 25 | 99 | 14 | 14 * Electric & Ethernet | 380VAC/VDC | 0-300 | | |||||||||
| ECN030-01EG | 30 | 180 | 1 | 1 * Ethernet | 24 VAC | 0~1 | | |||||||||
| ECN031-02P1-01EG | 31 | 86 | 3 | 2 Circuits * 2A; 1 Group * 1000M Ethernet | 0~220VAC/VDC | 0~300 | | |||||||||
| ECN038-03P2-02EG | 38 | 99 | 5 | 5 * Electric & Ethernet | 0~24VAC/VDC | 0-300 | | |||||||||
| ECN038-05P1-02EG | 38 | 99 | 7 | 7 * Electric & Ethernet | 220 VAC/VDC | 0~10 | | |||||||||
| ECN038-10P1-01EG | 38 | 99 | 11 | 11 * Electric & Ethernet | 0~380VAC/VDC | 0-300 |  | |||||||||
| ECN038-05P-08S | 38 | 99 | 13 | 13 * Electric & Ethernet | 380VAC/24VDC | 0-300 | | |||||||||
| ECN038-05P-08S-01EM | 38 | 99 | 14 | 14 * Electric & Ethernet | 0~380VAC/VDC | 0-300 |  | |||||||||
| ECN038-0315-0905-EM | 38 | 99 | 16 | 16 * Electric & Ethernet | 380VAC | 0-300 |  | |||||||||
| ECN038-10P-22S-01EG | 38 | 99 | 33 | 33 * Electric & Ethernet | 0~380VAC/VDC | 0-300 | | |||||||||
| ECN038-01EG | 38 | 119 | 1 | 1 * Ethernet | 0~380VACVDC | 0-300 |  | |||||||||
| ECN038-04P2-02EG-IP64 | 38 | 119 | 6 | 6 * Electric & Ethernet | 220 VAC/VDC | 0-60 |  | |||||||||
| ECN038-06P2-02EG | 38 | 119 | 8 | 8 * Electric & Ethernet | 0~380VAC/VDC | 0-300 | | |||||||||
| ECN038-30S-02EG | 38 | 119 | 32 | 32 * Signal & Ethernet | 24VAC/VDC | 0-300 | | |||||||||
| ECN038-04P3-04P2-02EG | 38 | 119 | 10 | 10 * Electric & Ethernet | 380VAC | 0-300 | | |||||||||
| ECN038-04P2-01EG | 38 | 135 | 5 | 5 * Electric & Ethernet | 380VAC | 0-300 | | |||||||||
| ECN038-04P2-03EM | 38 | 135 | 7 | 7 * Electric & Ethernet | 0~380VAC/VDC | 0-300 | | |||||||||
| ECN050-04P1-02EM | 50 | 119 | 6 | 6 * Electric & Ethernet | 0~380VAC/VDC | 0-300 | | |||||||||
| ECN050-05P5-01EM-01EG | 50 | 119 | 7 | 7 * Electric & Ethernet | 0~415VAC/VDC | 0-300 | | |||||||||
| ECN050-08P5-01EM | 50 | 119 | 9 | 9 * Electric & Ethernet | 0~415VAC/VDC | 0-300 | | |||||||||
| ECN070-06P3-02EG | 70 | 135 | 8 | 8 * Electric & Ethernet | 0~220VAC/VDC | 0~60 | | |||||||||
| ECN070-03P3-32S-02EG | 70 | 130 | 37 | 32 * Electric & Ethernet & Signal | 0~220VAC/VDC | 0~10 | | |||||||||
| ECN070-26P-19S-02EG | 70 | 135 | 47 | 47 * Electric & Ethernet & Video | 0~220VACVDC | 0-300 | | |||||||||
| ECN080-02P3-08S-01EM | 80 | 120 | 11 | 11 * Electric & Ethernet | 48 VAC/VDC | 0~16 | | |||||||||
| ECN100-07P-12S-02EM | 100 | 160 | 21 | 21 * Electric & Ethernet | 500VAC/VDC | 0~250 |  | |||||||||
| ECN100-02P1-12S-02EG | 100 | 185 | 16 | 16 * Electric & Ethernet | 0~380VAC/VDC | 0-300 | | |||||||||
| ECN127-09P5-05EM | 127 | 240 | 14 | 14 * Electric & Ethernet | 0~220 VAC/VDC | 0~30 | | |||||||||
| ACN-02P3-08S-02EG | 0 | 25 | 12 | 12 * Electric & Ethernet | 240 VAC | 0-300 | | |||||||||
| ACN-04P1-02EG | 0 | 22 | 6 | 6 * Electric & Ethernet | 0-24VAC/VDC | 0~100 | | |||||||||
| ACN-05P-01EG | 0 | 30.5 | 12 | 12 * Electric & Ethernet | 110VAC/VDC | 0-200 | | |||||||||
| ACN22A-12-01EM | 0 | 22 | 1 | 1* Ethernet | 0~24VAC/VDC | 0-250 | | |||||||||
| ACN-56A-0218-08S-2E2 | 0 | 25 | 12 | 12 * Electric & Ethernet | 240VAC | 0-300 | | |||||||||
PCN012-06P1-04S-01EG | 12 | 130 | 11 | 11 * Electric & Ethernet | 0~220VAC/VDC | 0-300 |
| |||||||||
| QCN0201-07P-02EG | 0 | 100 | 11 | 11 * Power, Ethernet, Pneumatic, Hydraulic) | 380VAC/DC | 0-100 |  |
