ECN180-04S

High temperature thermocouple signal slip ring, It can be used for 360 degree rotating transmission of current and thermocouple signal in high temperature environment. It can work stably in 100-250 degree high temperature environment for a long time. It is mainly used in hot roller, heating device and other high temperature environment.

Product Details

ECN180-04S	Specification
Current	4*K type thermocouple signal
Voltage	380VAC
Electrical noise	≤70mΩ(50rpm)
Dielectric strength	≥300V@50Hz
Isolation resistance	≥100MΩ@100VDC
Operating speed	0-50 rpm
Contact material	Precious metals
Operating temperature	-20~+60℃
Through bore size	180mm
IP protection grade	IP54

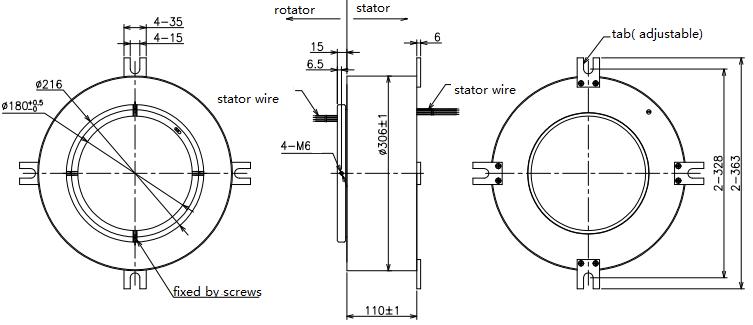

Outline drawing
