Through bore slip rings is ideally suited for applications where signals and power need to be transferred in a compact space and a through hole is required to pass a shaft or other feed through. ECN series uses a modular design that allows for unprecedented flexibility with respect to package size, circuit count, and mix of power and signal circuits. ECN series uses CENO's advanced bundle brush technology to greatly increase service life and optimize transmission stability.
ECN190-10P2-46P | Specification |
| Current | 4*30A,10*10A,20*2A,22*1A |
| Voltage | 500VAC/400VAC/250VDC/150VDC/48 VDC |
| Electrical noise | ≤70mΩ(50rpm) |
| Dielectric strength | ≥500VAC@50Hz |
| Isolation resistance | 100MΩ@100VDC |
| Operating speed | 0-500 rpm |
| Contact material | Gold to Gold |
| Operating temperature | -20~+60℃ |
| Through bore size | 190mm |
| IP protection grade | IP54 |

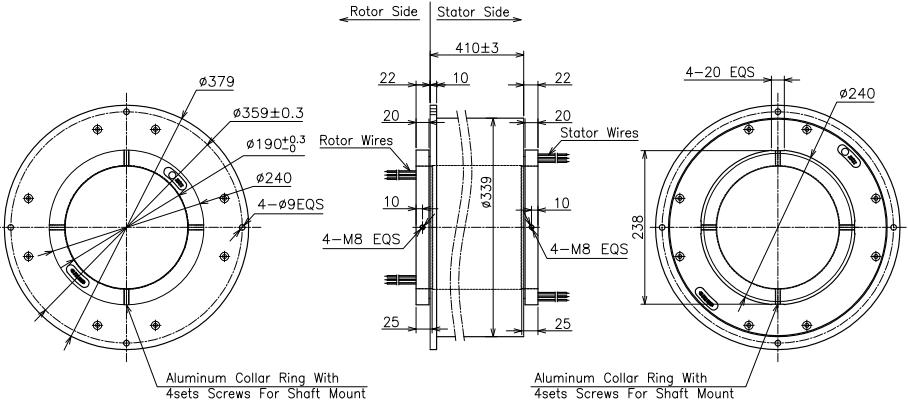

Outline drawing
