ECN300-24P

Thermocouple slip ring is able to work for thermocouple signal and thermocouple sensor. CENO can produce the thermocouple slip ring working in high temperature like 200°C. CENO can also work out the 0 temperature deviation measurement.

Product Details

ECN300-24P	Specification
Current	4Thermocouple signal,1230A
Voltage	380VAC
Electrical noise	≤20mΩ
Dielectric strength	≥1500VAC@50Hz
Isolation resistance	≥500MΩ@200VDC
Operating speed	0-200 rpm
Contact material	Graphite,precious metal
Operating temperature	-20~+80℃
Through bore size	300mm
IP protection grade	IP51

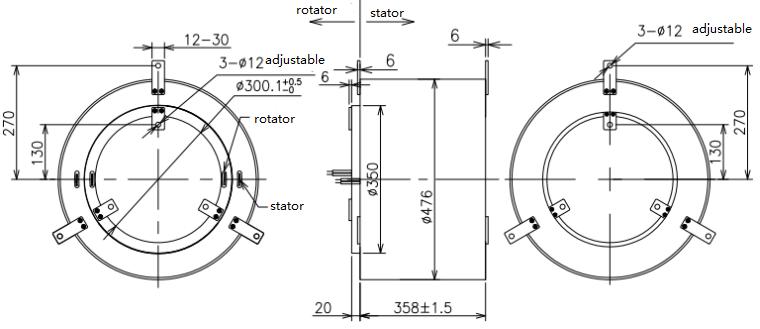

Outline drawing
