ECN-C-800-04P-2S

Large size slip-ring is named for its large size. It gets big through hole size and high protection level, is generally used in larger equipment and systems.The system can be fitted directly to the center of the rotation,to resolve the transmission problem of current and signal. This kind of large size slip ring with high protection grade is widely used in sewage treatment, large material transfer equipment and other systems.

Product Details

ECN-C-800-04P-2S	Specification
Current	424A,2signal
Voltage	380VAC
Dielectric strength	≥1500VAC@50Hz(Power） ≥300VAC@50Hz(Signal）
Isolation resistance	≥500MΩ@1000VDC
Operating speed	0-10 rpm
Contact material	Copper graphite
Operating temperature	-30~+80℃
Through bore size	Ф800mm
IP protection grade	IP65

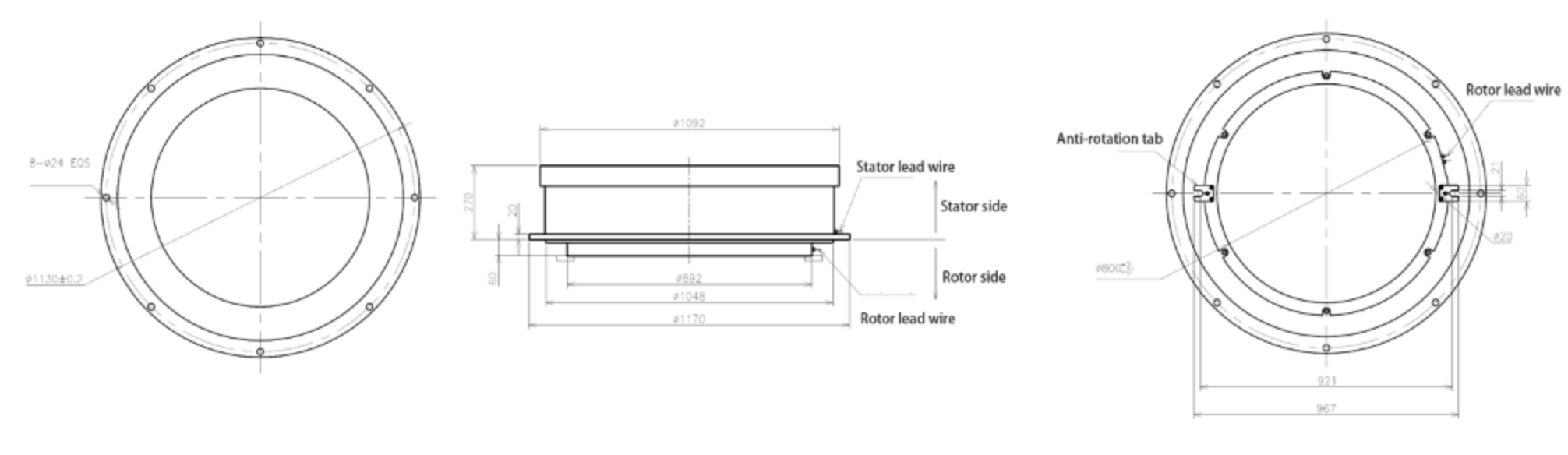

Outline drawing
