ECN100-0325-0510

CENO company standard series through bore slip rings are available in various bore sizes and circuit configurations. These slip rings are maintenance free and utilize fiber brush technology to insure reliable power and signal transfer capabilities as well as long operating lifetimes. we have many good designed and popular products, if you do not see a slip ring to match your requirements, please contact us for assistance.

Product Details

ECN100-0325-0510	Specification
Voltage	380VAC
Electrical noise	≤70mΩ(50rpm)
Dielectric strength	≥1000V@50Hz
Isolation resistance	500MΩ@500VDC
Operating speed	0-300 rpm
Contact material	Precious metals
Operating temperature	-20~+60℃
Through bore size	100mm
IP protection grade	IP54

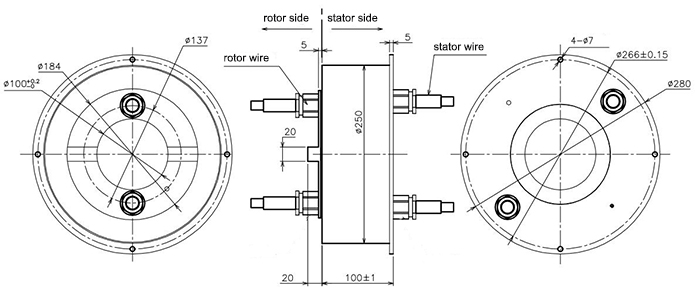

Outline drawing
