ECN-C-700-06P is a large size slip ring in CENO company, through bore inner size is 700mm and the outer size is 1070mm, there are 6 circuits electric signals and the Voltage is 380VAC, contact material is copper graphite and housing material is aluminum alloy & stainless steel, IP protection grade is up to IP65 and optionally. Both the stator side and rotor side are fixed by the bolts with scheduled maintain. This large size slip ring is mainly used on food automation equipment for its stable transmission performance and good rotation performance. CENO production process allow the slip ring to be built in an assembly line fashion that reduces freight and delivery time.
Specification
ECN-C-700-06P | |
Current | 6circuits * 24A |
Voltage | 380VAC |
Dielectric strength | ≥1500V@50Hz |
Isolation resistance | ≥500MΩ@1000VDC |
Through hole size | Ø700mm |
Rotation way | Brush rotate and circuit stable |
Maintainability | Scheduled maintain |
Installation way | Stator fixed by the bolts Rotor fixed by the bolts |
Lead wire length | Rotor wire 2000mm Stator wire 2000mm |
Contact material | Copper graphite |
Housing material | Aluminum alloy / Stainless steel |
Lead wire size | AWG10# Tin coated Teflon®UL |
Working speed | 1~2 Rpm |
Working Humidity | 60% |
Working Temperature | -30~+80℃ |
IP protection grade | IP 65 |

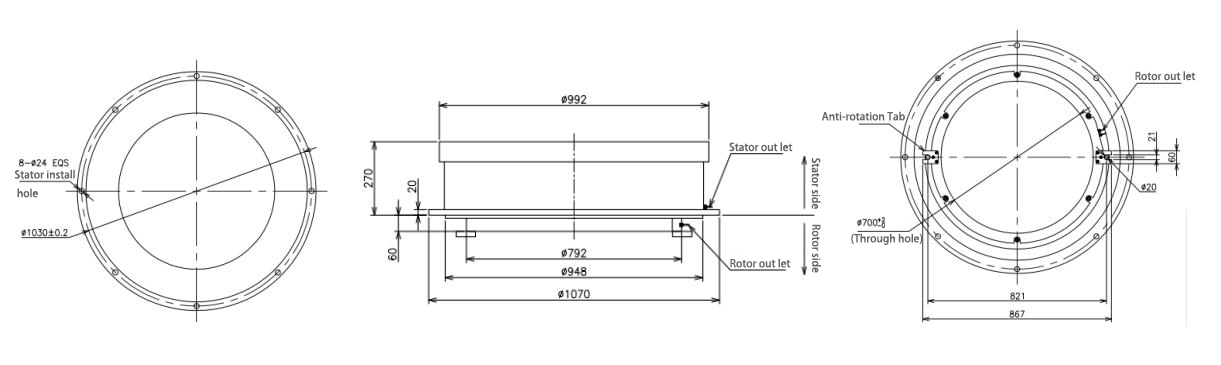

Outline drawing
