ECN-C-550-06P3 is one of the carbon brush slip rings in CENO company, due to it’s features and specification it can be named Large size slip ring too. It has 6 circuits *15A current with 380VAC. Contact material is copper graphite and the lid of housing material is aluminum and the housing body material is stainless steel. The rotor side electrical brush rotating and the loop in stator side is stationary, both rotor side and stator side are fixed by the bolts with scheduled maintenance. The inner diameter of this large size slip ring is Ø550mm and it can be working stably within the temperature from -30℃ to 80℃, the operating humidity exceed 60%RH. ECN-C-550-06P3 large size slip ring from CENO is mainly used on large material transfer equipment, sewage treatment, and food automation etc.
Specification
| ECN-C-550-06P3 | |
Circuits & Current | 6circuits*15A |
Voltage | 380VAC |
Dielectric strength | ≥2000V@50Hz |
Isolation resistance | ≥2000MΩ@500VDC |
Contact material | Copper graphite |
Housing material | Aluminum alloy & stainless steel |
Lead wire size | AWG12#Tin coated Teflon®UL |
Lead wire length | Rotor:500mm, Stator:500mm |
Maintenance | Scheduled maintenance |
Rotating way | The brush rotating and the loop is stationary |
Installation way | Both rotor and stator are fixed by bolts |
Operating Humidity | Exceed 60%RH |
Operating speed | 1-2 rpm |
Operating temperature | -30℃~+80℃ |
IP protection grade | IP55 |
Inner diameter | Ø550mm |

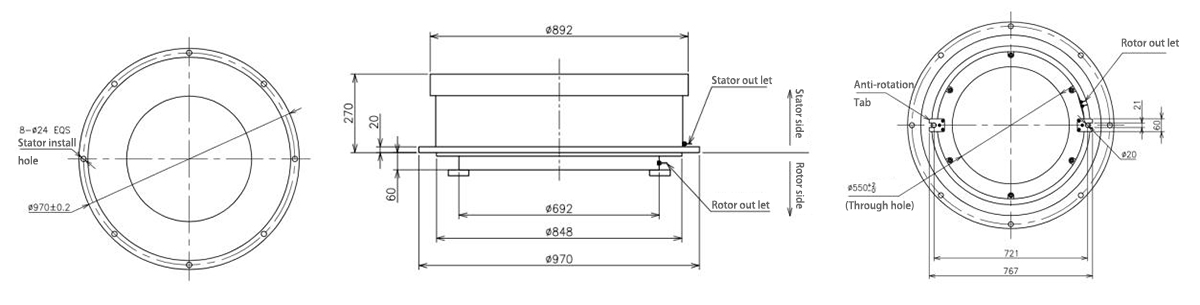

Outline drawing
