This is CENO capsule slip ring with IP65 ,high IP protection grade,low torque smooth rotation. its outer diameter is 22mm compact design with precious metals contact material, it is used for wood working machine. CENO design and manufacture perfect capsule slip rings and provide rotary solutions for your system.
ACN22A-04P3 | Specification |
Current | 4*15A |
Voltage | 0~12 VAC/VDC |
Electrical noise | Max 35m Ω |
Dielectric strength | ≥500V@50Hz |
Isolation resistance | 100MΩ@500VDC |
Operating speed | 0-300 rpm |
Contact material | precious metals |
OD | Φ22mm |
Operating temperature | -20~+60℃ |
IP protection grade | IP65 |

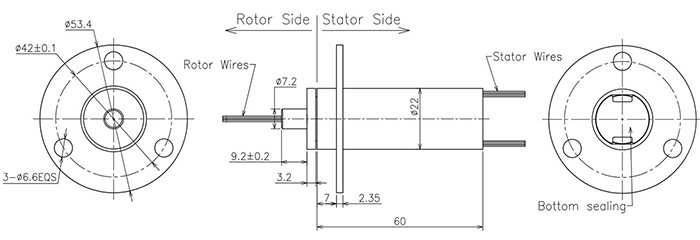

Outline drawing
