BHCN-C-096-12P

We can customize big current, carbon brush slip rings with different parameters such as diameter, current, number of circuits, speed and protection level according to customers' requirements. Widely used in security, automation, power, instrumentation, chemical, metallurgy, medical, aviation, military, shipping, transport and other mechanical and electrical equipment.

Product Details

BHCN-C-096-12P	Specification
Current	12*100A
Voltage	380VAC
Electrical noise	≤30mΩ
Dielectric strength	≥2000V@50Hz
Isolation resistance	500MΩ@500VDC
Operating speed	0-30 rpm
Contact material	Copper graphite
Operating temperature	-20~+60℃
Through bore size	96mm
IP protection grade	IP54

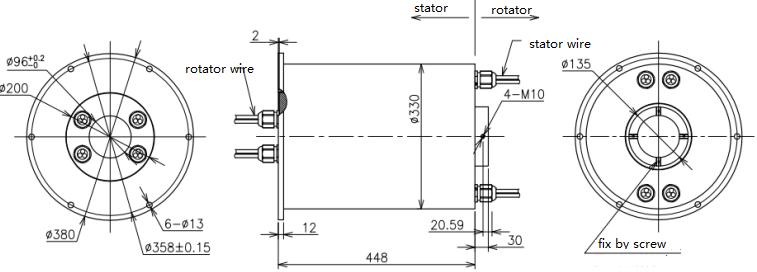

Outline drawing
