BHCN-C-260-08P

This is big bore rotary union of inner diameter 260mm, contact material apply imported copper graphite, reliable performance, low dust, long life. Housing material uses stainless steel. It would be easier for you to choose the electronics brush slip ring. But if the current or voltage is large, carbon brushes slip ring is a better choice. You just need to tell us the parameters including channels, current of each channel, hole size, OD and so on, we will provide a suitable solutions and drawings for you in free according to your parameters.

Product Details

BHCN-C-260-08P	Specification
Current	8*10A
Voltage	1000VAC
Electrical noise	≤70mΩ(50rpm)
Dielectric strength	≥ 2000V@50Hz
Isolation resistance	500MΩ@500VDC
Operating speed	0-8 rpm
Contact material	copper graphite
Housing material	stainless steel
Operating temperature	-20~+60℃
Through bore size	260mm
IP protection grade	IP54

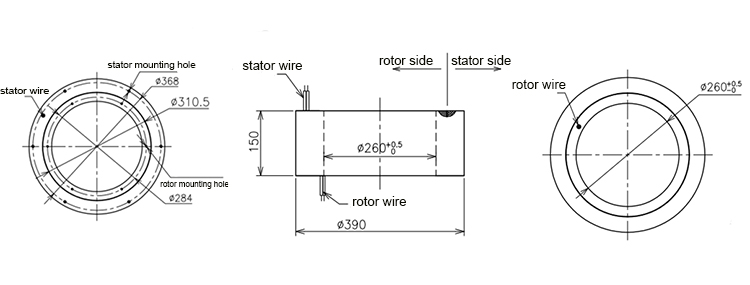

Outline drawing
