BHCN-350-06P

High current slip ring,include 50A,100A,200A ,250A,500A,1500A,3000A and other specifications,different current specifications are applicable to a variety of different sizes and power plating equipment,with easy installation, light weight and large load flow.Suitable for electrolysis, welding ,sewage treatment ,material delivery equipment and other industries.

Product Details

BHCN-350-06P	Specification
Current	6*200A
Voltage	380VAC
Dielectric strength	≥2000V@60Hz
Isolation resistance	≥500MΩ@500VDC
Operating speed	0-5 rpm
Contact material	Copper graphite
Operating temperature	-20~+60℃
Through bore size	350mm
IP protection grade	IP56

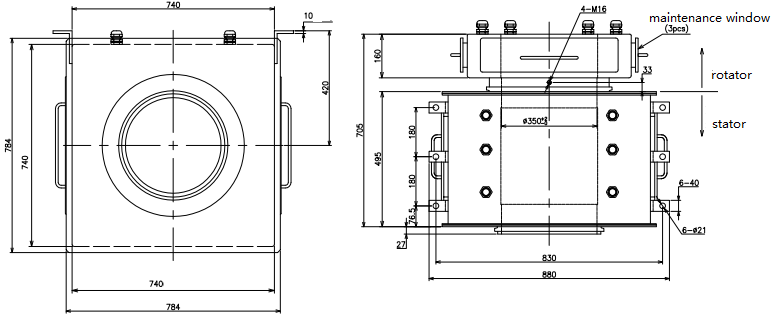

Outline drawing
