BHCN-10P-20P3-02P2-09S

CENO's carbon Brush slip ring is also named as large current collector or high power slip ring, which could transmit the current at lease on 100A or above. It widely be used in ship machinery, engineering machinery, port machinery, offshore crane, cable reel, propeller,as well as drilling platform.

Product Details

Specification

BHCN-10P-20P3-02P2-09S
Current	3550A(690VAC),380A(230VAC),350A(480VAC), 2015A,210A,9signal
Voltage	690VAC/480VAC/230VAC/24VAC
Dielectric strength	≥1000VAC@60Hz
Insulation resistance	500MΩ@500VDC,300MΩ@100VDC
Resistance fluctuation	≦70mΩ
Operating speed	0-1 rpm
Contact material	Copper graphite，silver-coated brush
Housing material	Engineering plastics
Working humidity	＜90%RH
Operating temperature	-10℃~+55℃
IP protection grade	IP56

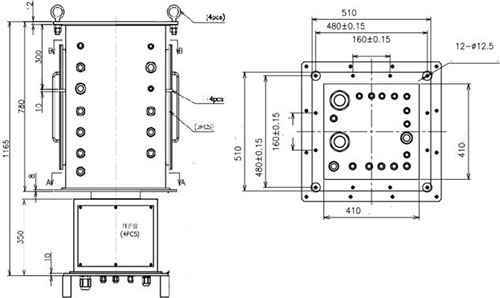

Outline drawing
