BHCN-C-57P-GW is a carbon brush slip ring with large size from CENO electronics, there are1 circuit for PE, 4circuits for 100A, 5circuits for 40A, 44circuits for 15A and 4circuit for 10A. It has excellent stain resistance, long weather resistance, low VOC emissions and high electrical safety, most of the parameter is optional according to customer’s application environment. The current can be designed to 6000A and the Voltage is up to 20000V, the contact or housing material, working speed & temperature is customized too. Mainly apply to the Marine machinery, Engineering equipment, offshore platform crane or boat’s propeller etc.
Specification
BHCN-C-57P-GW | Specification |
Current & Circuits | 57 circuits electric power |
Rating Voltage | 0~380 VAC/VDC |
Dielectric strength | ≥1500VAC@60Hz |
Isolation resistance | ≥500MQ@500VDC |
Electrical noise | ≤10mΩ (50rpm) |
Lead wire length | Rotor : 8000mm Stator : 870mm |
Operating speed | 0~8rpm |
Contact material | Copper graph |
Housing material | Aluminum alloy + stainless steel |
Maintenance | Schedule maintenance |
Working temperature | -20°C~+150°C |
Working humidity | 90%(20°C) |
IP protection grade | IP55 |
Rotation way | Electronics brush running, the circuit keep stationary |
Installation way | Rotor end fixed by flange Stator side drove by the screw bolt |

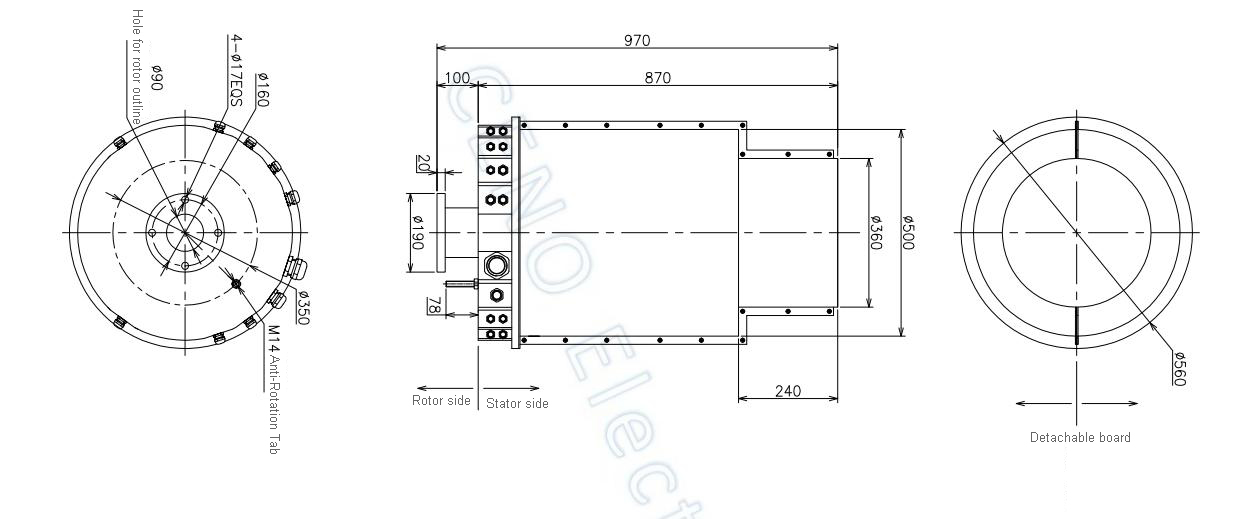

Outline drawing
