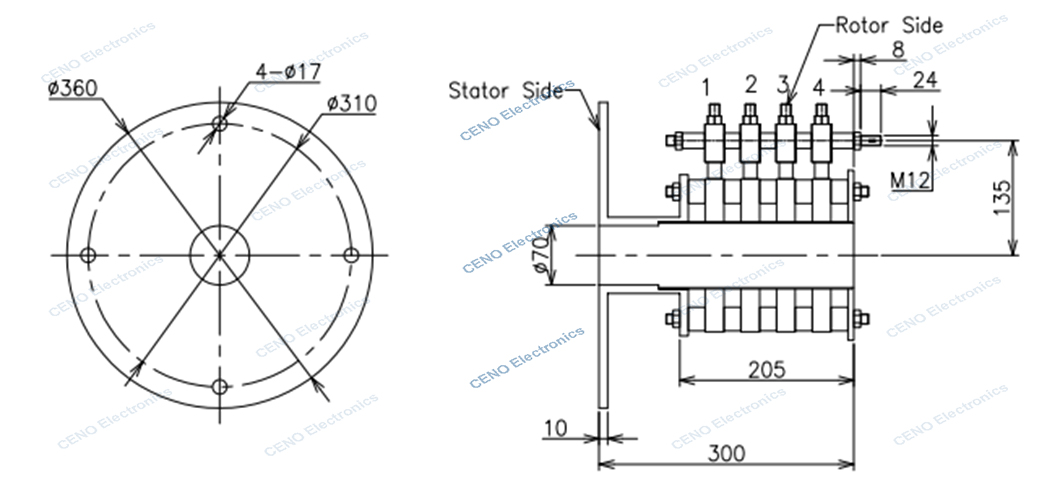

BHCN-C-70-04120 Carbon Brush Slip Ring

BHCN-C-70-04120 is CENO new product carbon brush slip ring applied to the mini hydroelectric generator. Carbon brush slip ring is also called High current slip ring, large power slip ring, can transmit high current 100A or higher to 2000A. For long weather resistance, excellent stain resistance, and high electrical safety, the carbon brush slip ring often apply to the marine machinery, engineering machinery. More information about how CENO carbon brush slip ring can fit your specific applications, please contact us freely.

Product Details

Specification

BHCN-C-70-04120	Specification
Current & Circuits	3 circuits * 120A; 1 circuit * PE
Rating Voltage	0~400VAC/VDC
Dielectric strength	≥1500VAC@50Hz
Isolation resistance	≥500MΩ@1000VDC
Contact resistance	≤30mΩ (50rpm)
Contact material	Copper-graphite
Housing material	Aluminum Alloy
Working temperature	-20°C~+60°C
Working humidity	≤90%RH
Protection Grade	IP00
Operating speed	0~5 rpm
Lead wire length	Rotor:35mm²; Stator:1000mm
Inner diameter	Ø70mm
Installation way	Flange installation
