ECN070-06P2-IP54 Through Hole Slip Ring

ECN070-06P2-IP54 is CENO standard through hole slip ring with inner diameter Ø70mm which is designed for the industrial automatic system.  This through hole slip ring provides reliable electrical power and signal transmission solutions for many kinds electron mechanical equipment to achieve complex movements. It can be said that the slip ring is a sign of advanced intelligent movement equipment. For more information about how CENO slip ring can fit your specific application, please contact us freely.

Product Details

Specification

ECN070-06P2-IP54Specification

Current & Circuits

6circuits*10A

Rating Voltage

0~240VAC/VDC

Dielectric strength

≥1000VAC@50Hz

Isolation resistance

≥500MΩ@500VDC

Contact resistance wave range

≤30mΩ (50rpm)

Contact material

Precious Metal

Housing material

Aluminum Alloy

Working temperature

-20°C~+60°C

Working humidity

≤60%RH

Protection Grade

IP54

Operating speed

0~ 150 rpm

Lead wire size

AWG17# Wire Teflon ® UL

Lead wire length

Rotor:300mm; Stator:300mm

Inner diameter

Ø70mm

External diameter

Ø135mm

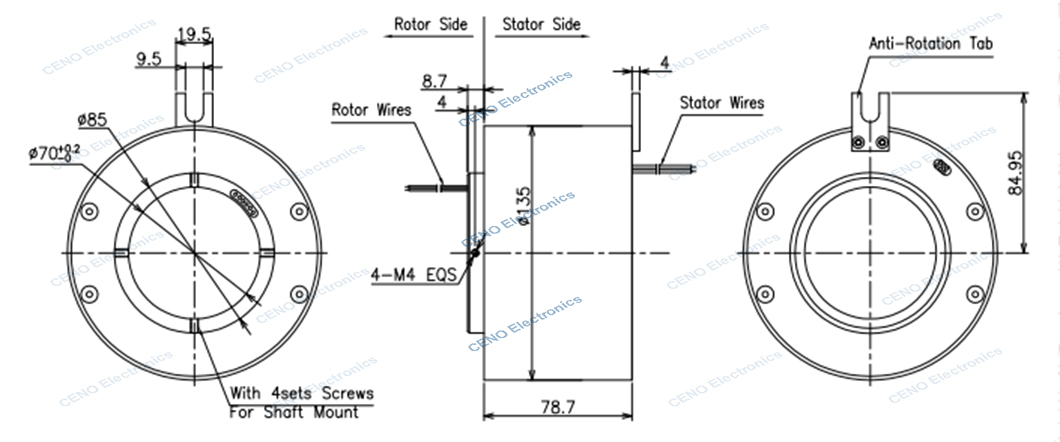

Outline drawing

ECN070-06P2-IP54-drawing rev
