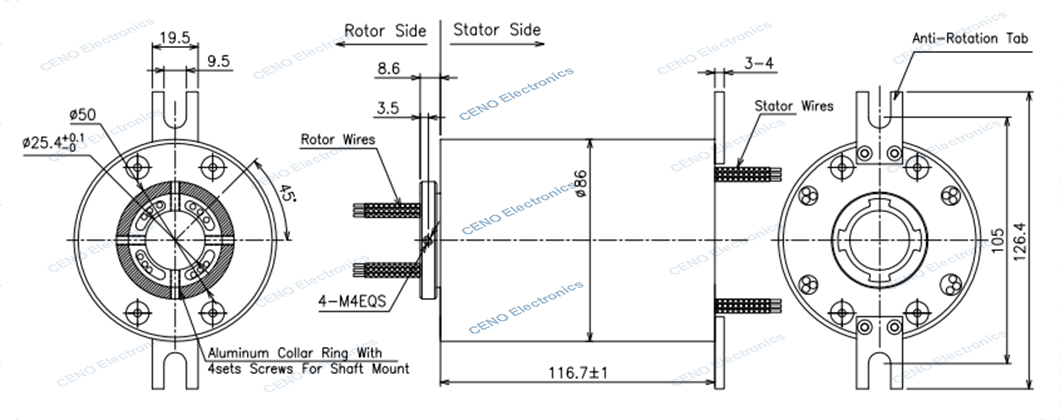

ECN025-12P5 Through Hole Slip Ring

ECN025-12P5 is CENO standard through hole slip ring with inner diameter 25mm for industrial automatic system. CENO slip ring have successfully performing in commercial and industrial applications for about twenty years. These products are developed for high performance environments and flexible requirements. Typical applications include the high-end industrial electrical equipment or precision electronic equipment with multi-function, high precision, high performance and multiple continuous rotary motions. For more information please contact us.

Product Details

Specification

ECN025-12P5	Specification
Current & Circuits	12circuits*25A
Rating Voltage	0~240VAC/VDC
Dielectric strength	≥1000VAC@50Hz
Isolation resistance	≥500MΩ@500VDC
Contact material	Precious Metal
Housing material	Aluminum Alloy
Working temperature	-20°C~+60°C
Working humidity	≤60%RH
Protection Grade	IP54
Operating speed	0~ 300 rpm
Lead wire size	AWG12# Wire Teflon® UL
Lead wire length	Rotor:300mm; Stator:300mm
Lead wire size	Fix up stator side with anti-rotation side shaft drives rotor running
Inner diameter	Ø25mm
External diameter	Ø86mm
