ECN023-09P2-23S

CENO ECN series through-bore slip rings can be customized according to customer's demand, the center hole is available from 0 to 980mm, it's can pass through the drive shaft, gas-liquid passage, also can integrate high frequency, fiber, encoder, wave guide, gas and liquid and other joints. ECN023-09P2-23S with inner bore size 23mm,outer diameter 99mm. The contact materials is gold to gold, it's can make sure the transmission performance more stable and lifetime more longer. Typical application including measurement instruments, packaging machine, medical equipment etc. Any special request please contact with us, we will provide you with the best solution.

Product Details


ECN023-09P2-23S

Specification

Circuits & Current

8*10A,23*signal

Voltage

50VDC

Dielectric strength

≥500V@500Hz (power)

≥100V@300Hz (signal)

Insulation resistance

≥1000MΩ@50VDC (power)

≥300MΩ@50VDC (signal)

Electrical noise

≤10mΩ

Operating speed

0-250 rpm

Contact material

Gold to gold

Housing material

Aluminum alloy

IP grade

IP54

Inner hole size

23 mm

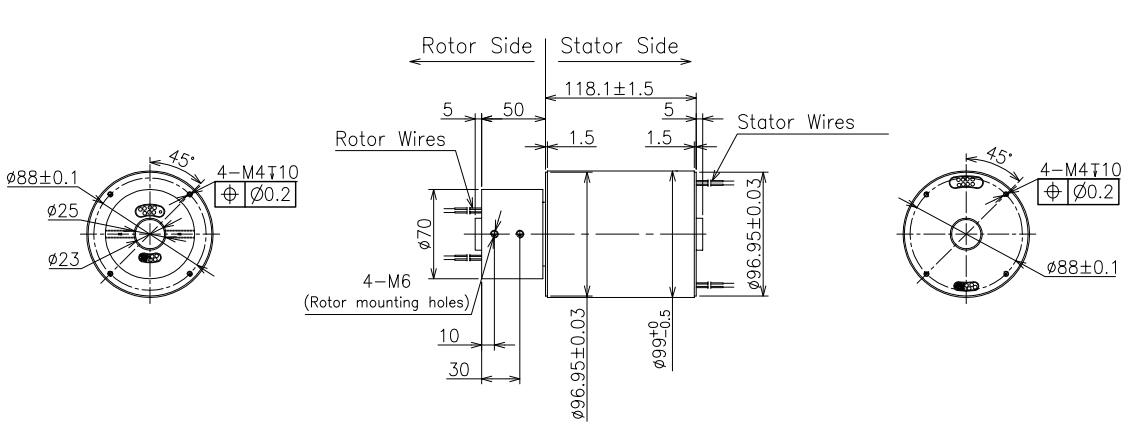

Outline drawing
