ECN000-03P2-06S

CENO company produce the industrial conductive slip ring with compact size, light weight, high reliability, maintenance free and protection level can reach IP68, that is the important reason why many manufacturers choose us.

Product Details

ECN000-03P2-06S	Specification
Current	310A , 6signal
Rating voltage	380VAC
Electrical noise	≤70mΩ(50rpm)
Dielectric strength	≥1000VAC@50Hz
Insulation resistance	≥100MΩ@500VDC
Working temperature	-20℃~+60℃
Protection grade	IP54
Working speed	0~100rpm
Contact material	Gold to Gold
Housing material	Aluminum alloy sandblasting oxidation black

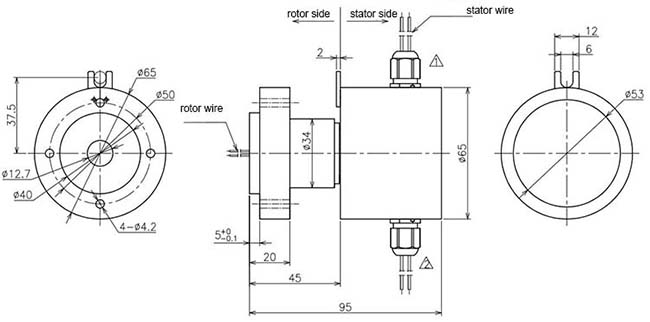

Outline drawing
