ECN000-06S

This is customized slip ring applied for tunnel dryer, there are aviation socket to transmit current on both rotor and stator side, without traditional wire, the aviation socket installs dust cover, it can prevent dust into the bearing interior, reduce the bearing wear. IP protection grade is IP64, high protection function and smooth rotation.

Product Details

Specification

ECN000-06S	Specification
Current	6*2A
Voltage	0~380VAC/VDC
Electrical noise	≤30mΩ(50rpm)
Dielectric strength	≥1000V@50Hz
Insulation resistance	300MΩ@500VDC
Operating speed	0-20 rpm
Contact material	precious metal
Operating temperature	-20~+80℃
Lead wire	Aviation socket
IP protection grade	IP64

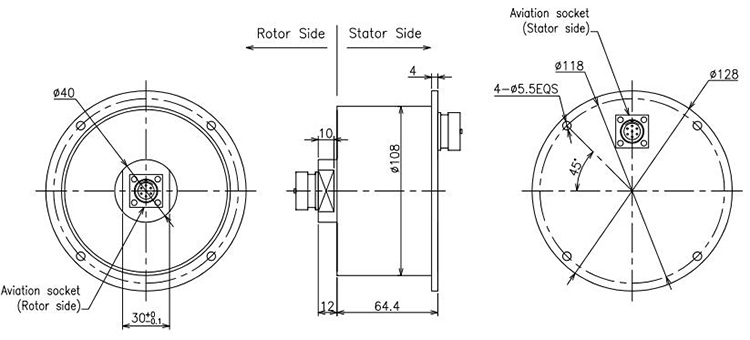

Outline drawing
