This slip ring looks like capsule slip ring, but its features are multi channels, 64 circuits total, most wires are twisted shielded wire, outer diameter is 40mm, compact size, working speed is 200rpm, inside contact material is gold to gold, housing material is aluminum alloy, the kind of slip ring is used for motion simulator.
ECN000-64P | Specification |
Current | 36*1A,20*2A,8*3A |
Voltage | 0- 240 VAC/VDC |
Electrical noise | 10m Ω max |
Dielectric strength | ≥1000V@50Hz(power) ≥300V@50Hz(signal) |
Insulation resistance | ≥300MΩ@500VDC(power) ≥100MΩ@100VDC(signal) |
Operating speed | 0-200 rpm |
Contact material | gold to gold |
Housing material | aluminum alloy |
OD | Φ40mm |
Operating temperature | -20~+60℃ |
IP protection grade | IP54 |

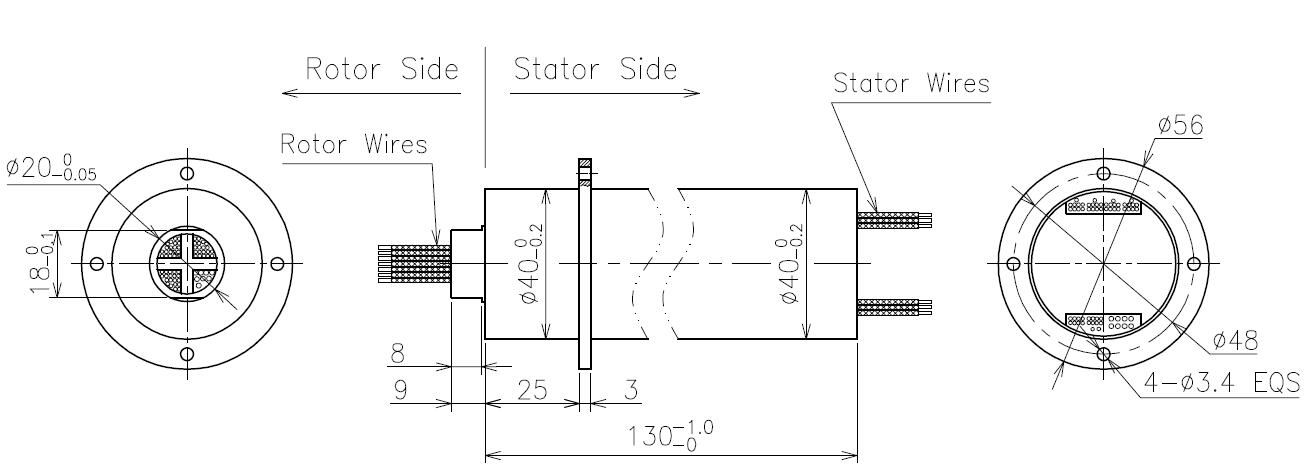

Outline drawing
