ECN015-02P

Through bore slip ring not only can carry higher current, as well as can transfer the Ethernet and digital signals. This type of slip ring uses a group fiber brush technology and ensures several contact points between the brushes and rings, in additionally, this technology of group fiber brush do not need lubrications and very less wear out debris, and maintenance free, longer life time operation.

Product Details

ECN015-02P	Specification
Current	2*2A
Voltage	50VAC
Electrical noise	≤20mΩ(50rpm)
Dielectric strength	≥300V@50Hz
Insulation resistance	100MΩ@100VDC
Operating speed	0-3000rpm
Contact material	gold to gold
Operating temperature	-20~+80℃
Through bore size	15mm
IP protection grade	IP54

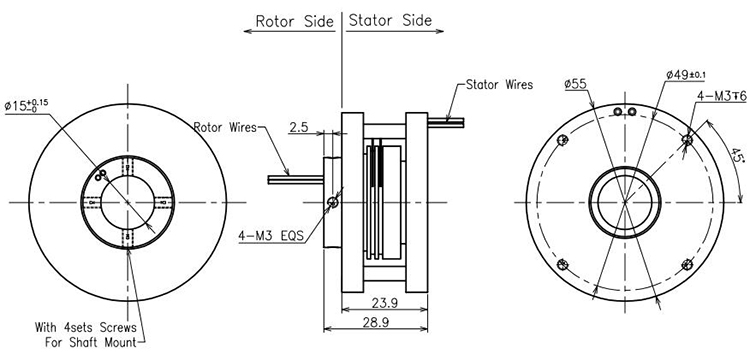

Outline drawing
