ECN038-03P2-12S-JZ

This slip ring with through bore design, it transmits power and TL signal together , it is widely used for radar antenna and satellite communications systems. it can work at an 16000M altitude airborne operation,and working temperature -55℃~+70℃ ,even though it works in harsh environments,it still maintains high performance.

Product Details

ECN038-03P2-12S-JZ	Specification
Current	310A,12TL signal
Voltage	24VDC
Electrical noise	≤70mΩ(50rpm)
Dielectric strength	≥500V@50Hz
Insulation resistance	500MΩ@500VDC(power) 300MΩ@500VDC(signal)
Operating speed	0-50 rpm
Contact material	precious metals
Operating temperature	-55~+70℃
Through bore size	38.1mm
IP protection grade	IP54

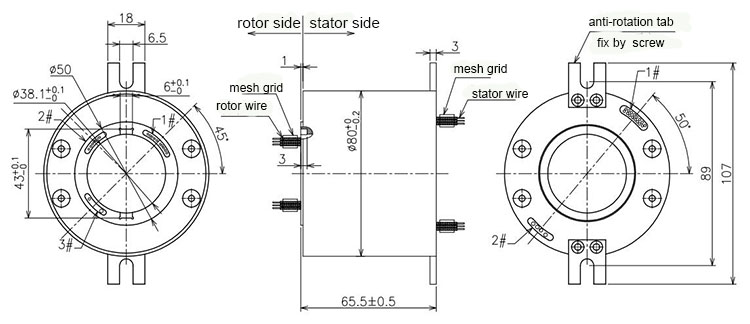

Outline drawing
