Electrical slip ring is a device used to transfer power and data from a stationary to a rotating structure. Slip rings can provide continuous or intermittent rotation while transmitting power and data -simplifying operation, improving application performance, and eliminating risk of damage to wiring between movable parts
ECN000-02P2-05P-33S | Specification |
Current | 3*50A,2*20A,22*signal,1 group Drive Cliq signal |
Voltage | 380VAC |
Electrical noise | ≤70mΩ @50mΩ |
Dielectric strength | ≥1500V@50Hz(power) ≥500V@50Hz(signal) |
Insulation resistance | ≥500MΩ@500VDC(power) ≥300MΩ@100VDC(signal) |
Operating speed | 0-50 rpm |
Contact material | Precious metal |
Operating temperature | -20~+60℃ |
IP protection grade | IP65 |

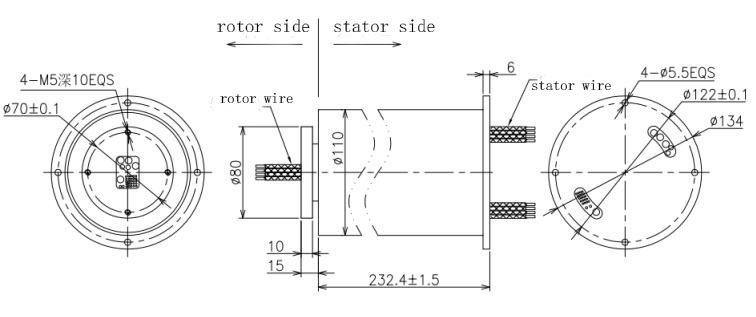

Outline drawing
