ECN038-15P2-02S

The through-hole slip ring is a general term for a series of electrical slip rings with a hole in the center. It is mainly used to transmit precision signals, weak current, high current and high voltage. Under continuous rotation of 360°, continuous transmission of power and signals, fiber brush technology, free maintenance or lubrication,multiple contact points on each circuit, low contact pressure, low noise, low contact wear, extremely long working life, standardized & modular design,also offers customized solutions, welcome to contact us.

Product Details

ECN038-15P2-02S	Specification
Current	1510A, 1485signal
Voltage	380VAC
Electrical noise	≤70mΩ(50rpm)
Dielectric strength	≥1000V@50Hz(power) ≥300V@50Hz(signal)
Insulation resistance	500MΩ@500VDC(power) 100MΩ@300VDC(signal)
Operating speed	0-300 rpm
Contact material	precious metals
Operating temperature	-20~+60℃
Through bore size	38.1mm
IP protection grade	IP54

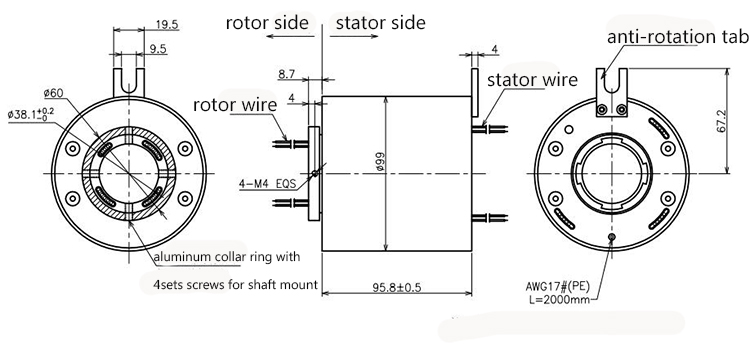

Outline drawing
