ECN045-04S

Through hole series slip ring produced by CENO Electronics ,it could provide electricity continuously for many industrial application, because it can integrate signal and current transmission together. Using the industry-leading manufacturing process, CENO slip rings is with reliable quality, long service life, no need lubrication as well as many other advantages,to meet customer requirements fully for rotary conduction, signal transmission,CENO can also provide many parameters for customer to choose, such as outer diameter, inner diameter, current, circuit number, IP protection.

Product Details


ECN045-04S

Specification
Current4*0.5A
Voltage5VDC
Electrical noise≤15mΩ(50rpm)
Dielectric strength≥500V@50Hz
Insulation resistance≥100MΩ@100VDC
Operating speed0-100 rpm
Contact materialprecious metal
Operating temperature-20~+60℃
Through bore size45mm
IP protection gradeIP54

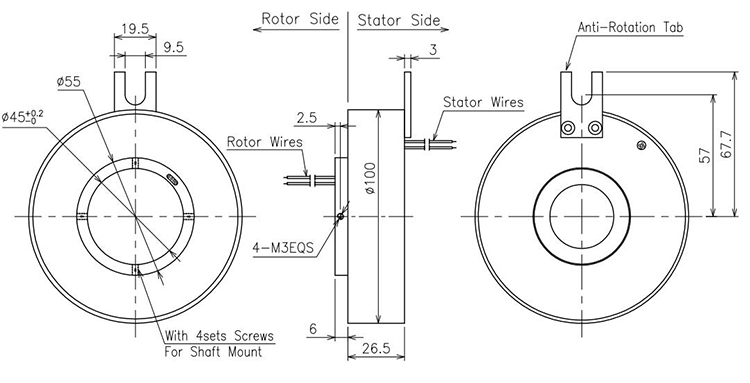

Outline drawing
