ECNS000-086-03P3

CENO company produce the industrial conductive slip ring with compact size, light weight, high reliability, maintenance free and protection level can reach IP68, that is the important reason why many manufacturers choose us.

Product Details

ECNS000-086-03P3	Specification
Current	3*15A
Rating voltage	380VAC
Electrical noise	≤70mΩ(50rpm)
Dielectric strength	≥1000VAC@50Hz
Insulation resistance	500MΩ@500VDC
Working temperature	-40℃~+80℃
Protection grade	IP54
Working speed	0~300rpm
Contact material	Precious metal
Lead wire size	AWG14#
Lead wire length	Rotor 300mm stator 1000mm

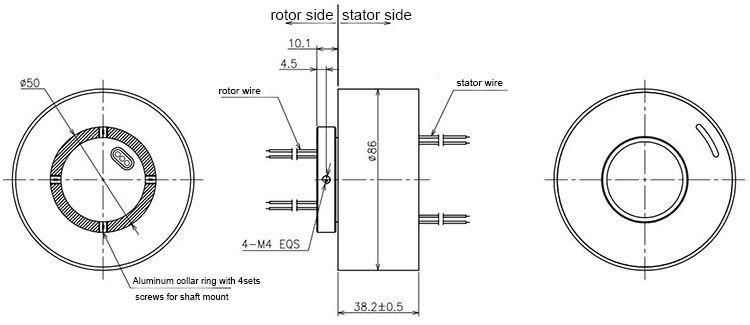

Outline drawing
