CENO's capsule slip rings have flexible spec options to fulfill the various and complex requirement of systems.Transmit data and analog signal, compatible with bus protocolRing number are range from 2 rings up to 200 rings .Power and signal are easily to be integrated into one slip rings under our years of proven technique.Outstanding signal types are Ethernet, Canbus, Profibus, RS, HDMI, HD-SDI, USB and so on. Typical outside diameters including 5.5mm,12.4mm,22mm. Widely used in radar system, military equipment, medical equipment.
ECN000-07P3-29S | Specfication |
Circuit number¤t | 7*15A,5*3a,24*signal |
Voltage | 0~220VAC/VDC |
Electrical noise | ≤35mΩ |
Dielectric strength | ≥500V@50Hz |
Insulation resistance | ≥50MΩ@500VDC |
Operating speed | 0-300 rpm |
Contact material | Gold to gold |
Housing material | Aluminium alloy |
IP protection grade | IP54 |

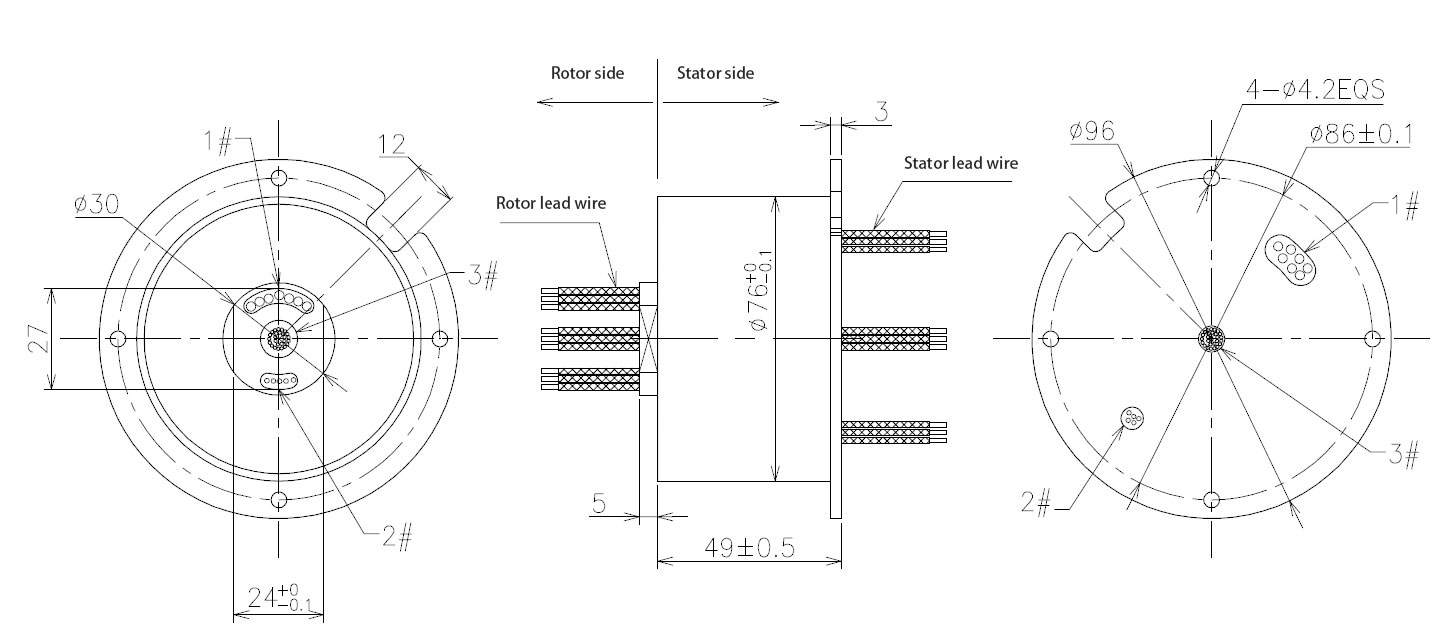

Outline drawing
