ECN000-03P2-12P1 Power Slip Ring

ECN000-03P2-12P1 is CENO new design electrical power slip ring. It's an economical and popular used on various industrial automatic system. For it's stable performance, long service life and suitable rugged environments always applied to the Mine, Offshore, down-hole or Vehicular, even modern military vehicular, such as the tanks, turret. When it combined with the data signal or optic fiber, can be used on the commander station and the infrared sight. For more information about how CENO slip ring can fit your specific usages please contact us freely.

Product Details

Specification

ECN000-03P2-12P1Specification

Current & Circuits

3circuits*10A; 12circuits*5A

Rating Voltage

0~400VAC@50Hz

Dielectric strength

≥1000VAC@50Hz

Isolation resistance

≥500MΩ@500VDC

Electrical Noise

30mΩ (50rpm)

Contact material

Precious metal

Housing material

Aluminum Alloy

Working temperature

-20°C~+60°C

Working humidity

60 %RH

IP protection grade

IP54

Operating speed

0~300rpm

Lead wire size

AWG20# Wire Teflon® UL

3 G 1.5mm²

Lead wire length

Rotor : 4500mm

Stator :1500mm

External diameter

Ø86mm

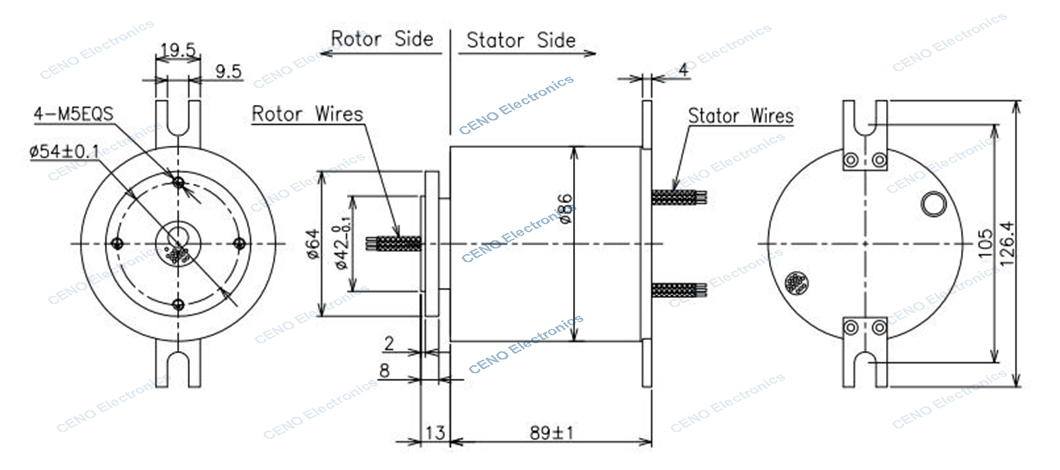

Outline drawing


ECN000-03P2-12P1 (S06058040) drawing rev
