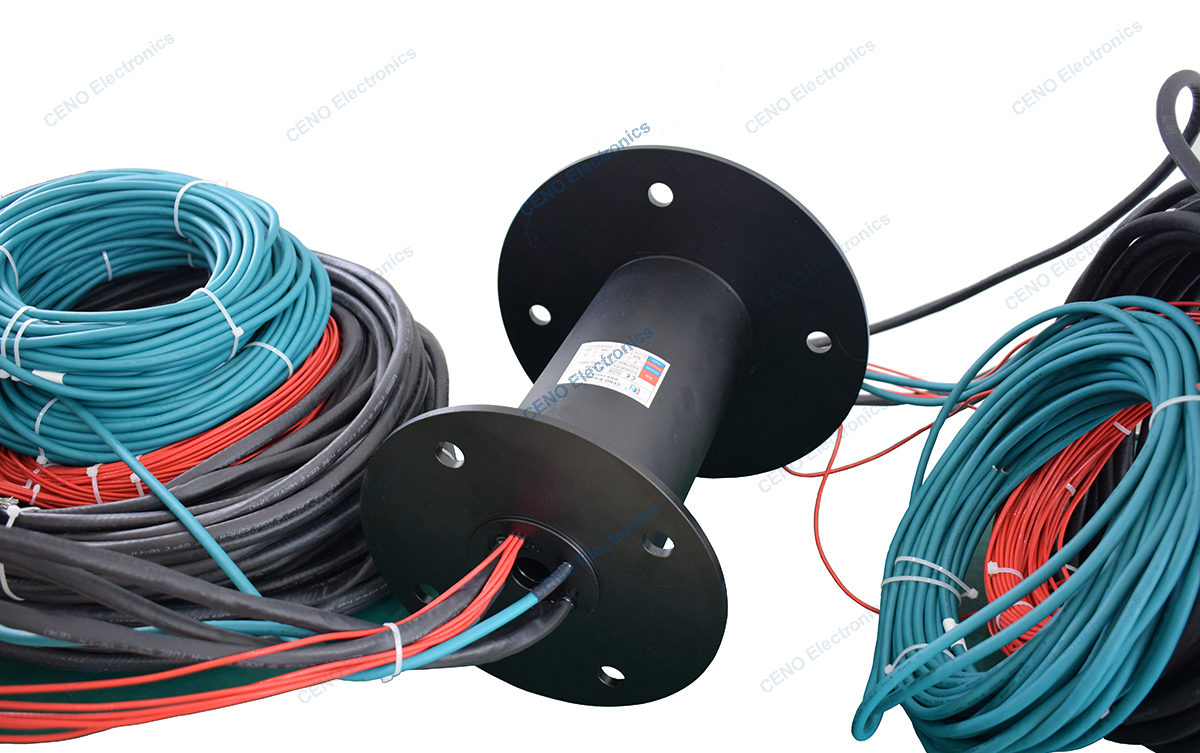

ECN000-03F is a fiber optic slip ring from CENO electrical company, there are 2 circuits of multi mode signal with the wave length from 850nm to 1310nm, and 1 circuit of single mode with the wave length from 1310nm to 1550nm in this fiber optic model. The interface type is SC and the fiber type is Armour optical fiber with external diameter Ø3.0mmin both single mode and multi mode. The protect grade is IP66 and is optional as customer’s request.
Specification
ECN000-03F | Specification | |
Lead wire length | Rotor : 2000mm±20mm Stator :2000mm±20mm | |
Operating speed | 0~50rpm | |
Contact material | Precious metal | |
Housing material | Aluminum alloy + Stainless steel | |
Working temperature | -20°C~+80°C | |
Working humidity | <60% | |
Protect grade | IP66 | |
External diameter | Ø115±7mm | |
Fiber | Parameter | |
Fiber mode | 1 * single mode | 2 * multi mode |
Fiber type | Armour optical fiber with external diameter Ø3.0mm | Armour optical fiber with external diameter Ø3.0mm |
Wave length | 1310 / 1550nm | 850 / 1310nm |
Insert loss | <3.5dB | <3.5dB |
Insert loss WOW | <1.5dB | <1.5dB |
Return loss, min | >20dB | >20dB |
Optical power, max | 23dBm | 23dBm |
Interface type | SC | SC |
Outline drawing
