ACN22-03P1-04S-01HD is CENO new HDMI High Definite Slip Ring Capsule designed for the medical machinery. The HDMI system slip rings are developed for high performance environments and flexible requirements. This mode can transfer 1 channel 3G-SDI signal,4 circuits for RS232 and 3circuits for power, supports video standards up to 2K@90Hz, no flash screen no frame loss phenomenon. CENO mini slip ring capsules are economical price, available for fast delivery and designed for tough industrial and military environments. For more information about how CENO mini slip rings can fit your specifications, please contact us freely.
Specification
| ACN22-03P1-04S-01HD | Specification |
|---|---|
Current & Circuits | 3circuits*5A; 1circuit*3G-SDI; 4circuits*232 |
Rating Voltage | 0~100 VAC/VDC |
Dielectric strength | ≥500VAC@50Hz; ≥100VAC@50Hz |
Isolation resistance | ≥100MΩ@500VDC; ≥10MΩ@100VDC |
Contact resistance | ≤35mΩ (50rpm) |
Contact material | Precious Metal |
Housing material | Engineer Plastic |
Working temperature | -20°C~+60°C |
Working humidity | ≤60%RH |
Protection Grade | IP40 |
Operating speed | 0~300rpm |
Lead wire length | Rotor:150mm±10mm; Stator:150mm±10mm |
External diameter | Ø22mm |

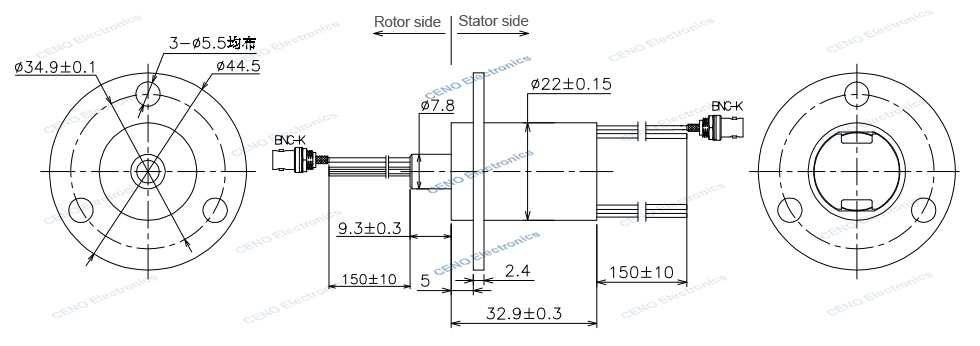

Outline drawing
