ECN000-02P1-25S-01HD

4K SDI coaxial image transmission via the solid type slip ring.There are 5Amp,2Amp and signal channels. Signal type has RS232,CANBUS,HD-SDI.The parameter 12Gbps data rate on video channel satisfies camera video quality.There is no crosstalk between these signal channels during operation.

Product Details

ECN000-02P1-25S-01HD	Specification
Circuits & Current	2x5A,2x2A,4xCANBUS,21xRS,1x4K SDI
Voltage	0~28VDC
Electrical noise	Max 15mΩ (50rpm)
Dielectric strength	≥500V@50Hz
Insulation resistance	≥100MΩ@100VDC
Operating speed	0-100 rpm
Contact material	Precious metal
Housing material	Aluminium alloy
Working temperature	-20℃~+60℃
IP protection grade	IP51

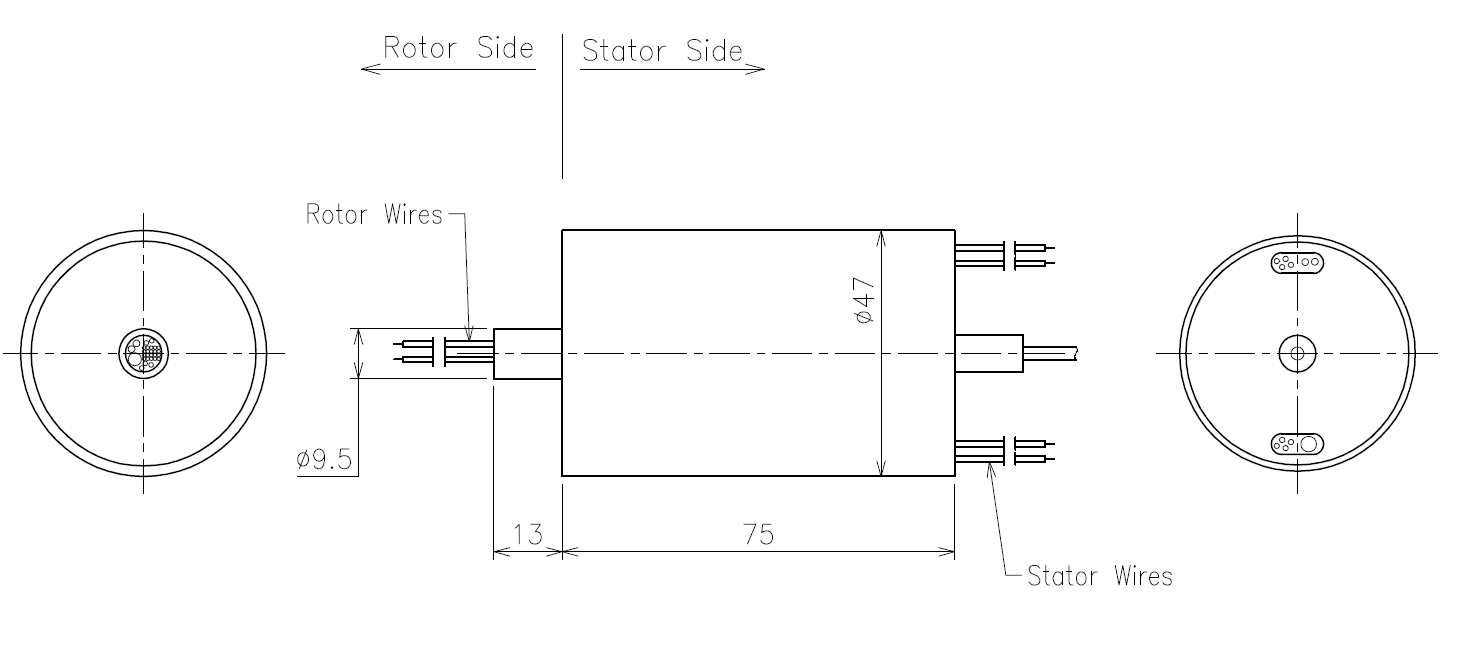

Outline drawing
