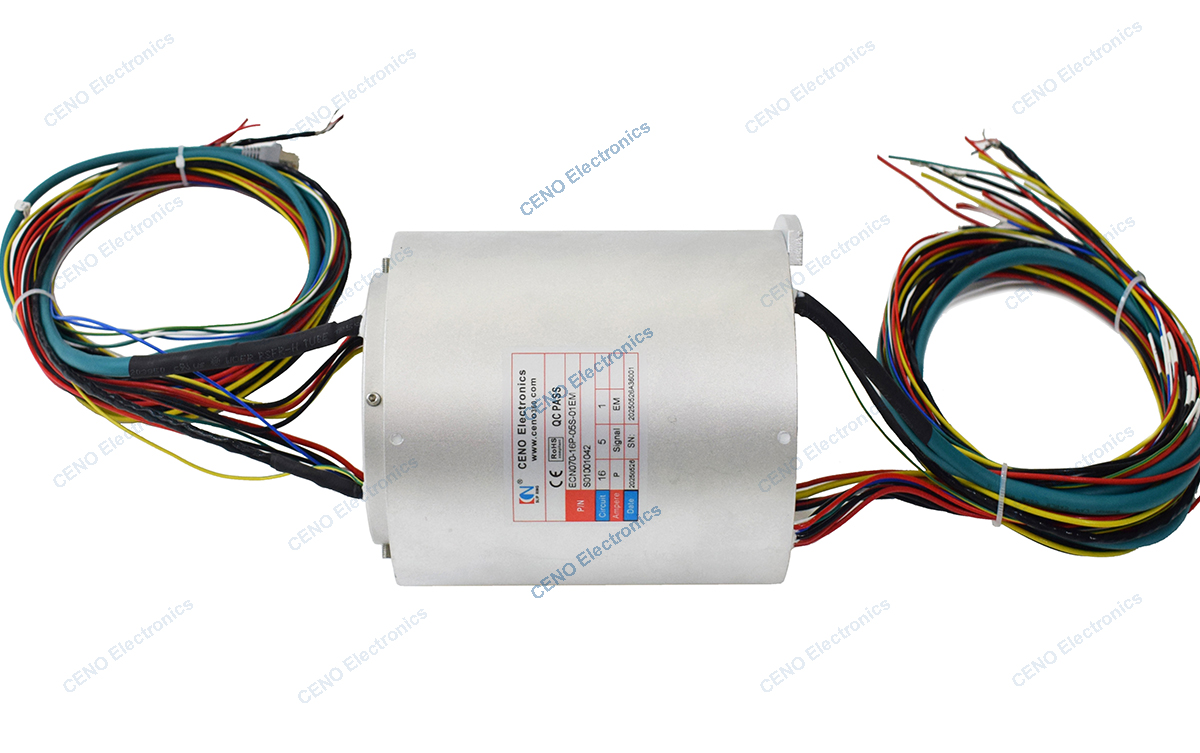

ECN050-14S-01EM-IP65 Low Temperature Slip Ring

ECN050-14S-01EM-IP65 is CENO low temperature slip ring with 3 group K-type thermo couple, 1 group Encoder and 1 circuit 100M Ethernet, which is designed for construction machinery specially adjusted fro harsh working conditions. In order to achieve the corresponding level of high/low temperature resistance, these slip rings are stricter than ordinary slip ring in material selection such as shells, bearings, brushes. with stable performance and ageing resistance, For more information please contact us.

Product Details

Specification

ECN050-14S-01EM-IP65	Specification
Current & Circuits	3 group * K type thermo couple; 1 group * Encoder signal; 1 group * 100M Ethernet
Rating Voltage	0-24VAC/VDC
Dielectric strength	≥300VAC@50Hz
Isolation resistance	≥100MΩ@300VDC
Contact resistance	≤30mΩ (50rpm)
Contact material	Precious Metal
Housing material	Aluminum alloy
Working temperature	-40°C~+60°C
Working humidity	60 %RH
IP protection grade	IP65
Operating speed	0~300rpm
Inner bore	Ø50mm
Outer diameter	Ø119mm
Lead wire size	K type thermocouple wire; 8 core twisted shielded wire; CAT5e
Lead wire length	Rotor:300mm; Stator:300mm
Installation	Fix up stator side with anti-rotation side
