ECN000-04P-01EM is an Ethernet slip ring with protection grade IP55 from CENO Electronics, there are 4 circuits for 16A and 5 group for 100M Ethernet signal. As an industry standard, slip ring with Ethernet connectors allow to transmit Ethernet protocol through a rotating interface can be called Ethernet slip ring. CENO new customize product ECN000-04P-01EM can mix electrical power and Ethernet signal as the special environment. Most of the specification can be optional according to different application. It's mainly apply to Iron and steel industry, automatic equipment, filling machinery and communication systems.
Specification
| ECN000-04P-01EM | Specification |
|---|---|
Current & Circuits | 4circuits*16A (400VAC); 5 circuits* 100M Ethernet Signal (24VDC) |
Rating Voltage | 400VAC/24VDC |
Dielectric strength | ≥1000VAC@50Hz, 60s(Power) ≥500VAC@50Hz, 60s(Signal) |
Isolation resistance | ≥500MΩ@500VDC(Power) ≥100MΩ@100VDC(Signal) |
Electrical noise | ≤30mΩ (50rpm) |
Operating speed | 0~15rpm |
Contact material | Precious metal |
Housing material | Aluminum alloy + RAL 9010 |
Working temperature | -50°C~+5°C |
Working humidity | 60% |
IP protection grade | IP55 |
External diameter | Ø155mm |
Lead wire size | 4*2.5mm² wire(RSKABEL) 2*2*0.75mm² Twisted wire (RSKABEL) |
Lead wire length | Rotor : 12000mm Stator : 12000mm ( with plug on cable ) |
Installation | Four screw spindle fixed on the axis of rotation |

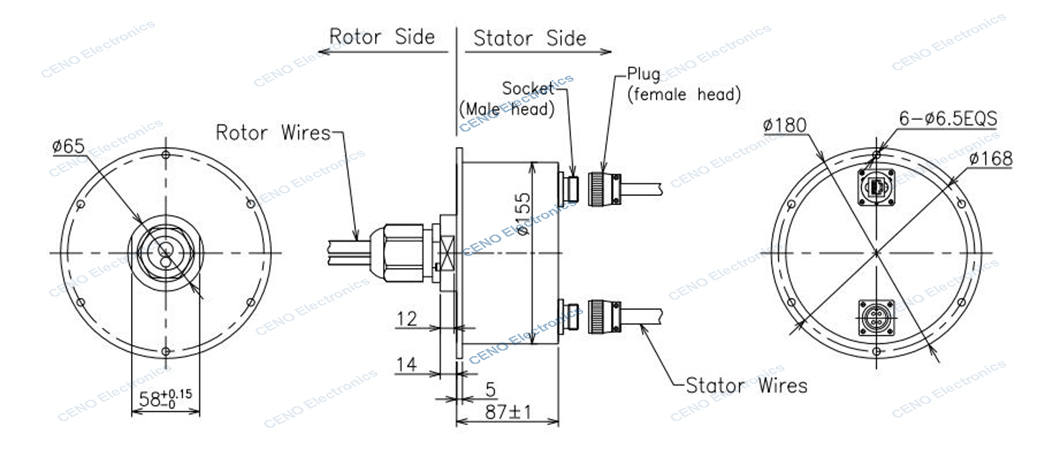

Outline drawing
