QCN01M6-20 Pneumatic Rotary Union

QCN01M6-20 is CENO new customized pneumatic rotary union for industry automatic equipment. Pneumatic rotary union is mechanical component which transmit kinds of liquid from stator entrance to the rotation exit side, and can keep independent, isolates fluids and prevents connections at the same time. Rotary union can be integrated many channels to transfer kinds of liquids, and wok stably in different temperature and environments. More information please contact us.

Product Details

Specification

QCN01M6-20	Specification
The road	1 Channel gas ( M6*1.0 )
Pressure Max	10 Bar
Speed	50RPM
Working Temperature	-20°C~+60°C
Housing Material	Aluminum alloy + stainless steel
Inner Diameter	Ø20mm
Working Torque	0.5N*m

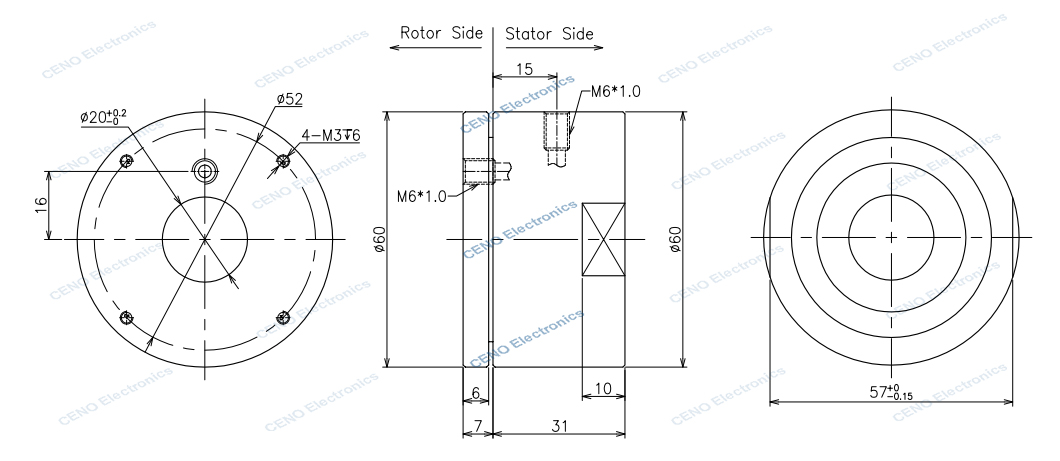

Outline drawing
