The QCN series rotary unions are designed for air, gas and vacuum use and are ideal for a number of automation and robotic applications. With light weight, compact rotary unions feature an all aluminum alloy construction and two independent flow passages capable of transferring different types of media at the sametime. Stainless steel models are available to prevent corrosion for use with applications requiring water or corrosive media transfer. Models are also available with optional shaft O-ring face seal glands for flush mounting the union to an interface.
QCN0401 | Specification |
Channel number | 4 |
Max pressure | 10MPa |
Rotating speed | 0-200 rpm |
Outer diameter | 56mm |
Connection size | G1/8”,G2/8”,G3/8” are optional |
Rotating torque | Depends on specific pressures |
Inlet & Outlet | 4 In & 4 Out |
Contact material | Precious metal |
Housing material | Aluminum alloy |
IP grade | IP54 |
Working temperature | -20℃~+60℃ |

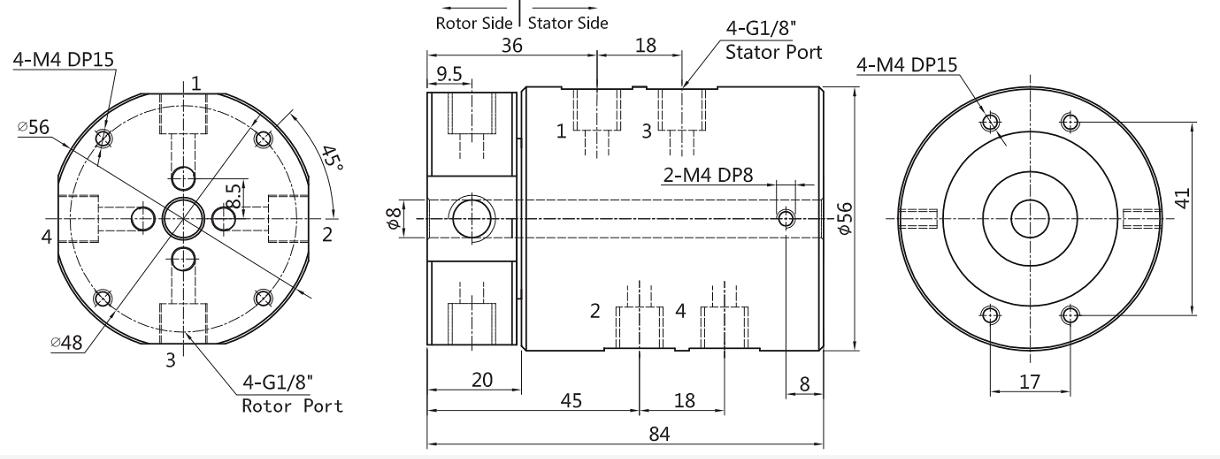

Outline drawing
