QCN03M5-43 Pneumatic / Hydraulic Rotary Union

QCN03M5-43 is a Pneumatic Rotary Union with 3 channel for gas from CENO Electronics, the pipe size is Ø3mm and can withstand air pressure from -80KPa to 0.5MPa. The connector sealing ring is M5*0.8 and different sealing forms can be selected according to different application. This type QCN03M5-43 Pneumatic Rotary Union is specially designed for industrial automation equipment application. CENO’s QCN series product can transmit pneumatic / Hydraulic, such as steam, compressed air, water, hot oil, hydraulic oil, vacuum, liquid, vitriol, drinks...

Product Details

Specification

QCN03M5-43	Specification
Channels	3 channel * gas
Connector size	Sealing Ring M5*0.8
Inputting Pip size	Ø3mm
Working temperature	-20°C~+60°C
Pressure	-80KPa~0.5MPa
Housing material	Stainless steel+ Aluminium alloy

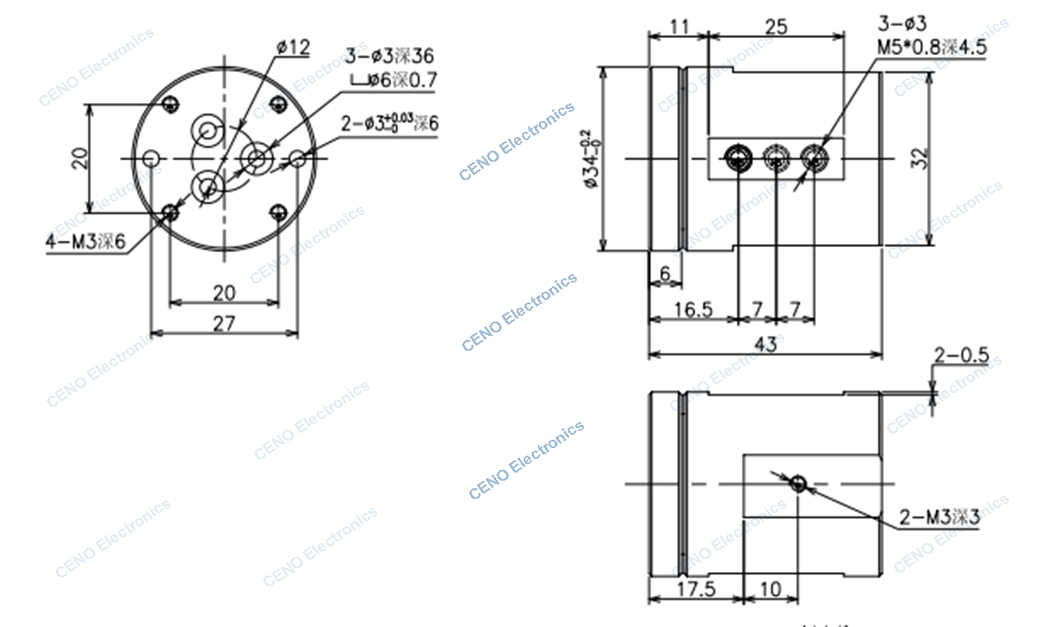

Outline Drawing

1-23021G45H0928
