PCN Series Unitary Pancake Slip Ring installation guide

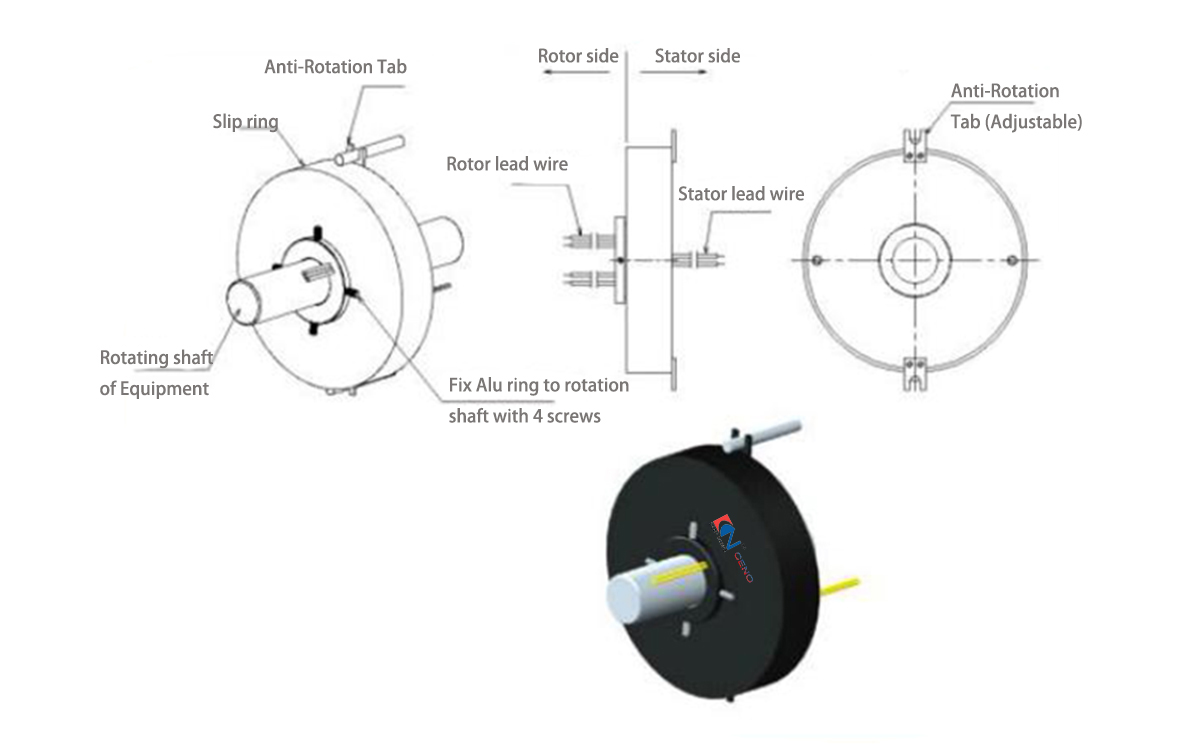

1. First, install the rotor end of the slip ring, and put the driving shaft of the equipment through the hole of the integrated pancake slip ring, pass through the installation hole of the rotor side, and it is concentric with the driving shaft and locked.

2. Then install the stator side of the slip ring, insert the anti-rotation tab of the equipment into U-shape groove of the stator side of the slip ring, a certain freedom should be ensured, do not forcibly fix the connection, other wise it will effect the working life of the slip ring.

3. Debug the overall concentricity of the integrated slip ring to ensure smooth operation of the slip ring

Attentions

1. When installing slip rings, ensure that the wire is well protected to avoid damage to the insulation layer of the wire and affect the product performance

2. Both the rotor side lead wire and stator side lead wire of the slip ring can not be locked and connected, should keep one end is locked and the other end is loose.

3. The fixing screws need to be prevented from loosening, and cannot be loosened due to vibration and impact during work.
