BHCN-C-32P-06F Integrate FORJs Slip Ring

BHCN-C-32P-06F is CENO new high protection IP65 carbon brush slip ring which Integrate 6 channels Fiber Optic Rotary Joints with 32 circuits rotating electrical connectors. Can be named Integrate Electric power and FORJs slip ring, and most of CENO integrate slip ring can be customized for different application and working environment, such as the circuits, current, voltage, IP Protection grade or working speed etc. For more information please contact us.

Product Details

Specification

BHCN-C-32P-06F	Specification
Current & Circuits	32 circuits * 10A
Rating Voltage	0 ~ 48VAC/VDC
Dielectric strength	≥100VAC@50Hz
Isolation resistance	≥10MΩ@100VDC
Contact resistance	≤30mΩ (50rpm)
Contact material	Gold to gold
Housing material	Stainless steel
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP65
Operating speed	0~30 rpm

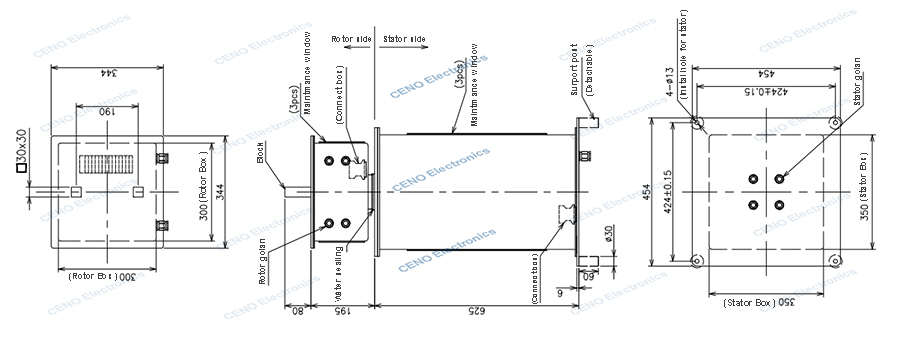

Outer diameter	454mm * 454mm
Rotation Way	Flange installation
RF Parameter
Channels	6 channels
Style	Single
Wavelength	1310 ~ 1550 nm
Insert loss (max)	≤ 4.0dB
Insert loss varies (max)	<2.0dB
Lead wire length	1000mm
Connect type	ST/ST
