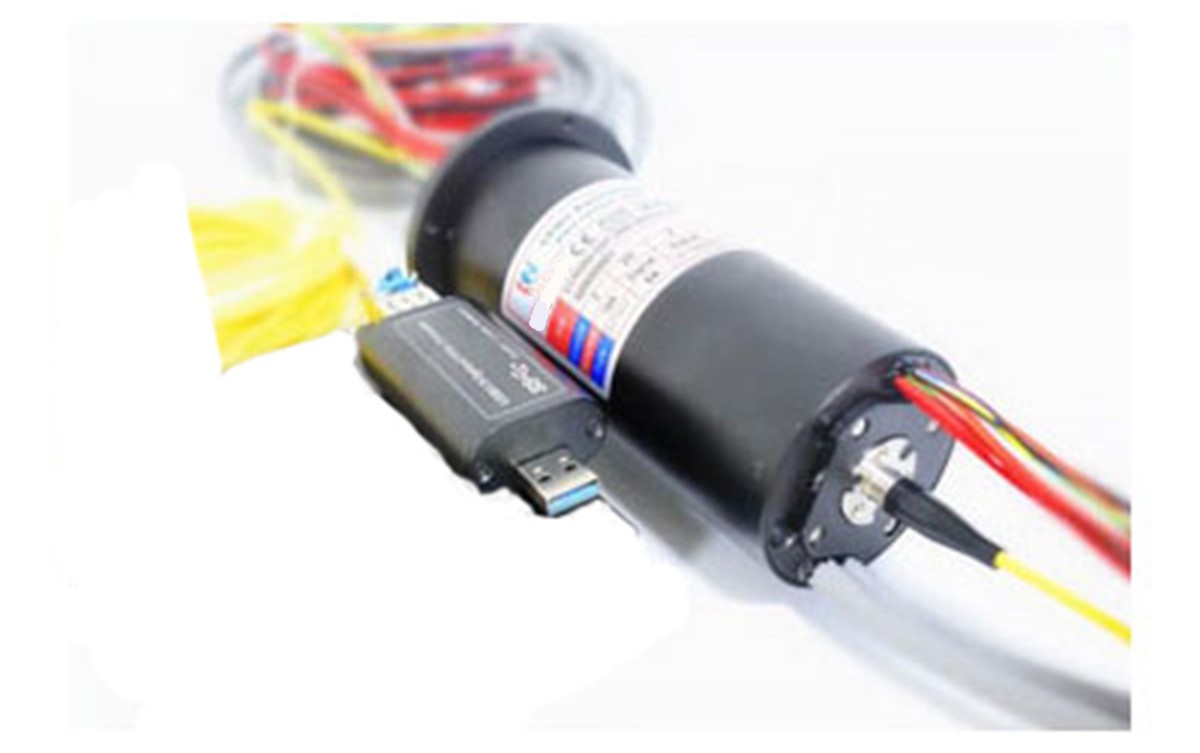

ECN000-02P-20S-04EG-01F

CENO is a top level fiber optic slip ring manufacturer and supplier, we always provide our customers with reliable and high quality fiber optic slip ring.

Product Details

ECN000-02P-20S-04EG-01F	Specification
Current	26 circuits electric power and Ethernet signals
Rating voltage	380VAC
Electrical noise	≤70mΩ(50rpm)
Dielectric strength	≥1000VAC@50Hz(Power) ≥500VAC@50Hz(Signal)
Insulation resistance	≥500MΩ@500VDC(Power) ≥100MΩ@500VDC(Signal)
Working temperature	-20℃~+60℃
Protection grade	IP54
Working speed	0~300rpm
Contact material	Precious metal
Fiber type
Fiber channel	1

Outline drawing
