QCN0203-03P3-47S

This is a integrated slip ring with rings electric power / signal / Ethernet and HDMI; and 2 channels for liquid, the inner center hole can pass through the drive shaft, gas-liquid passage, It can also integrate high frequency, fiber, encoder, wave guide, gas and liquid and other joints. Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

Product Details

Specification

QCN0203-03P3-47S	Specification
Current	50 Circuits Electric Power, Signals / Ethernet / HDMI
Voltage	0~220VAC/VDC
Electrical noise	≤30mΩ(50rpm)
Dielectric strength	≥1500V@50Hz (power); ≥300V@50Hz (signal)
Insulation resistance	≥500MΩ@500VDC (power); ≥100MΩ@100VDC (signal)
Operating speed	0-100 rpm
Contact material	Precious metals
Housing material	Aluminum alloy

Channels	*2 channels water**
Pressure	≤1.0MPa

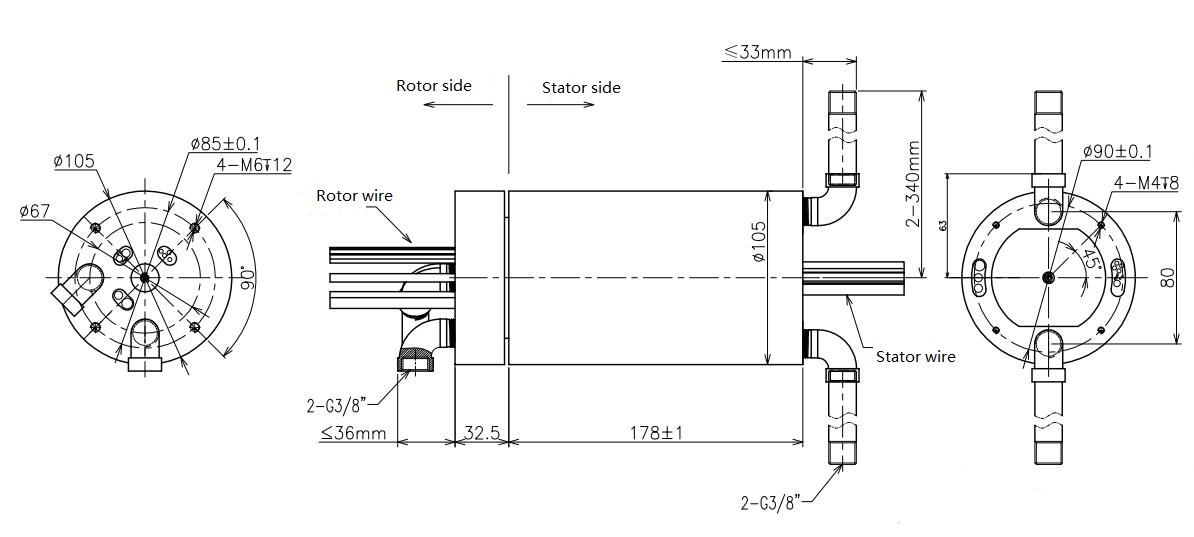

Outline drawing
