QCN0201-06P1

QCN0201-06P1 is one mode, which combine air channel and electrical channel in one body. It saves the space effectively and simplify operation and installation. The air pressure is 10Mpa and there are 2 channels for air passing and 6 channel for power transmitting.

Product Details

Specification

QCN0201-06P1	Specification
Current	6 circuits electric power
Voltage	380VAC
Electrical noise	≤70mΩ(50rpm)
Dielectric strength	≥500V@50Hz
Insulation resistance	100MΩ@100VDC
Operating Speed	0-100 rpm
Contact Material	Precious Metals
Operating temperature	-20~+60℃
Channels number	*2 Air**
Max pressure	10MPa

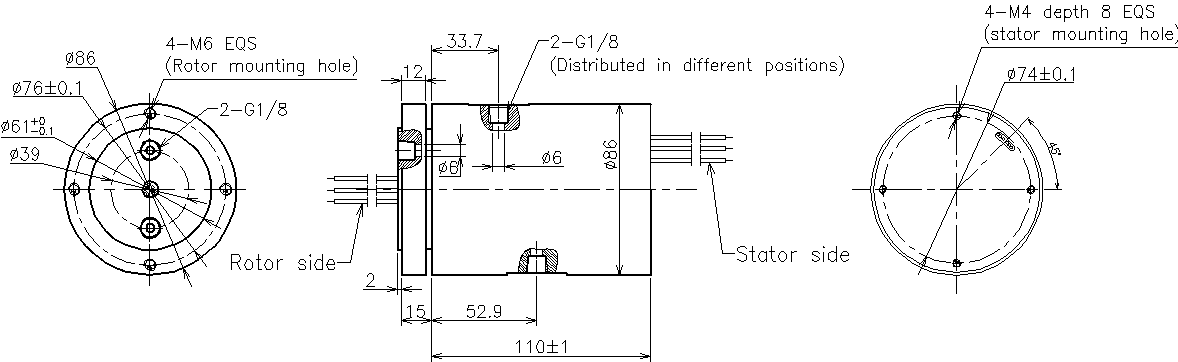

Outline drawing
