ACN22-02P2-12S-02HD Integrate RF Slip Ring Capsule

ACN22-02P2-12S-02HD is CENO new customized High Definition Video Slip Ring which combine electric power with 2 groups of HDMI RF signal, 1 group of INS signal. Full name of INS is inertial integrated navigation system, the basic working principle of the INS is based on Newton’s laws of mechanics. We can obtain the acceleration in the navigation coordinate system, information as speed, yaw angle & Position.Often apply to Driver less vehicles, aircraft navigation system and kinds of test equipment turntable. More information please contact CENO expert team.

Product Details

Specification

ACN22-02P2-12S-02HD	Specification
Current & Circuits	2 circuits * 10A; 2 circuits * 1A; 2 Group* RF Signal; 1 group * Signal; 1 group * Ins signal
Rating Voltage	24VAC/VDC
Dielectric strength	≥100VAC@50Hz
Isolation resistance	≥50MΩ@100VDC ≥10MΩ@100VDC
Contact material	Gold to Gold
Housing material	Aluminum alloy
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP40
Operating speed	0~300rpm

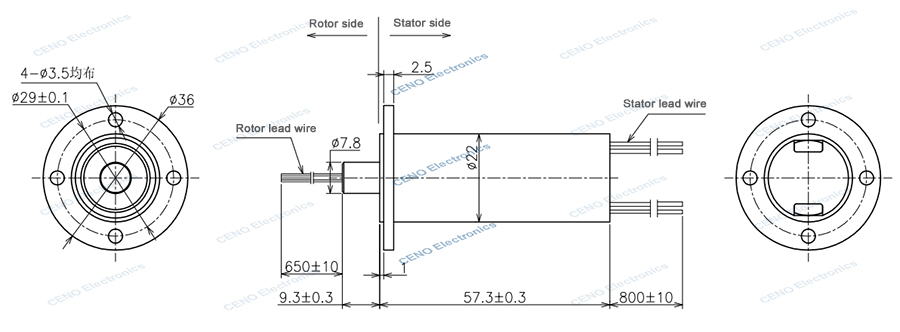

External diameter	Ø22mm
Lead wire	Rotor:650±10mm; Stator: 800±10mm;
RF
Frequency range	DC-2150MHz
Isolation rate	>20dB
VSWR	<4
Insert loss	<5.5dB@500/500mm lead wire length
Lead wire type	RG316
Lead wire length	Rotor: 650±10mm; Stator: 800±10mm
