Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. CENO Ethernet slip ring transmission distance could up to 1000Mbps, or over this speed.It could integrate another current and different signal into one slip ring according customer's requirement. Transmit stably, no package loss, no cross talk, low loss. RJ45 connector is available. No interference between power and signal, comply with EMC compatibility. Inner diameter can be customized from 3mm to 980mm, the through hole can pass through the drive shaft, gas-liquid passage, it also can integrate with high frequency, fiber, encoder, wave guide, gas and liquid and other joints.
ECN025-06P1-06P2-02EG | Specification |
Circuits & Current | 6*10A,6*5A,2*1000M Ethernet |
Voltage | 0~380VAC/VDC |
Dielectric strength | ≥1000V@50Hz (power) ≥500V@50Hz (signal) |
Insulation resistance | ≥500MΩ@500VDC (power) ≥100MΩ@100VDC (signal) |
Electrical noise | ≤ 70mΩ (50 rpm) |
Operating speed | 0-300 rpm |
Contact material | Precious metal/ Gold to gold |
Housing material | Aluminum alloy |
IP grade | IP54 |
Working temperature | -20°C~+60°C |
Inner diameter size | 25.4 mm |

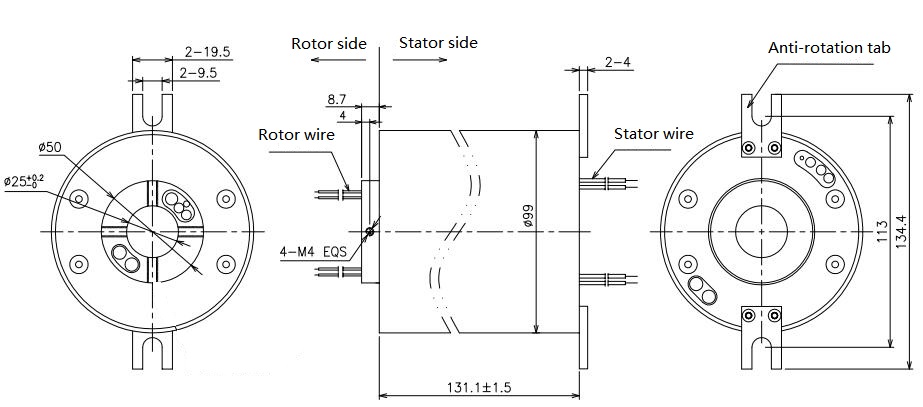

Outline drawing
